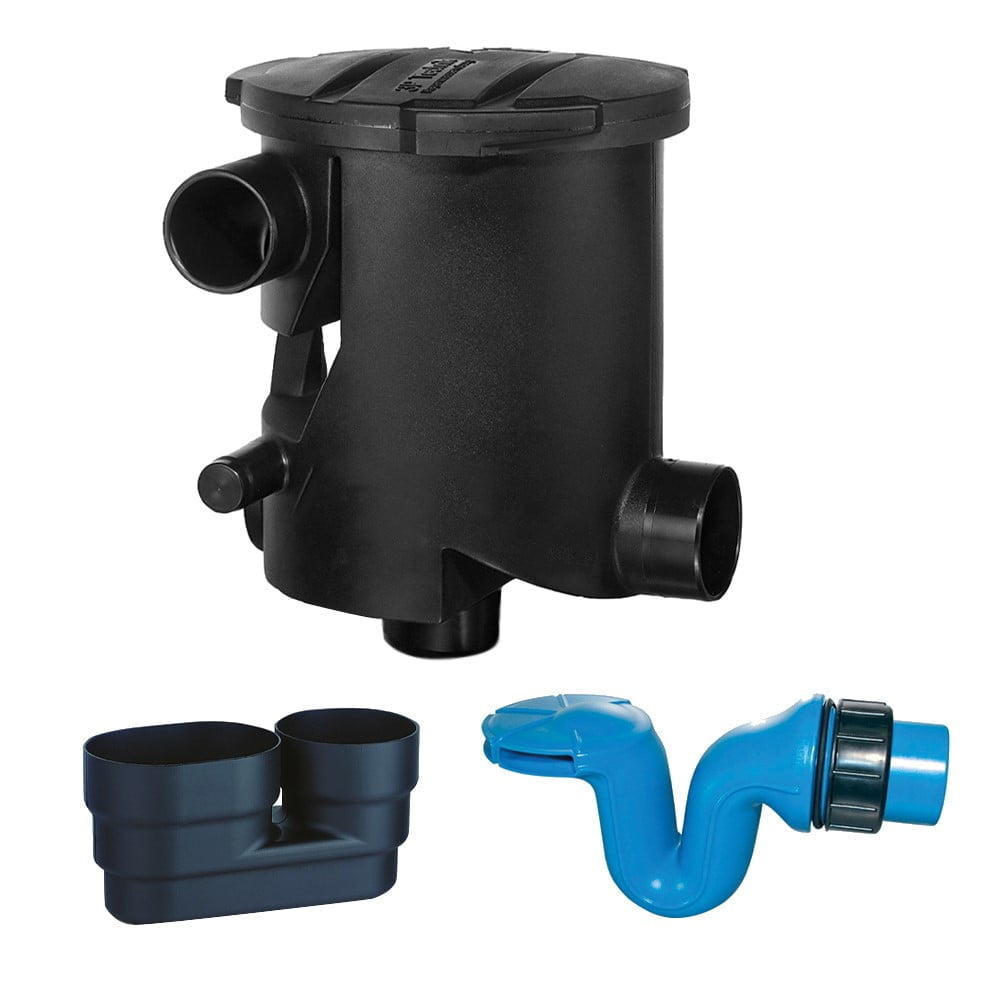

Rainwater harvesting Kit B - 450m2 filter

Filter Kit B is engineered for roof areas up to 450 square meters and features a dual-stage rainwater filtration system, along with a siphon overflow and a calmed inlet.

As rainwater enters the filter, it first encounters a cascade designed to eliminate the largest particles of debris. The pre-filtered water then passes through a secondary sieve filter with a mesh size of 0.65 mm, which captures any remaining debris.

The purified water proceeds to the tank through a calmed inlet, which introduces the water gently to minimize turbulence and preserve the sediment at the tank's bottom.

This calmed flow not only stabilizes the water but also oxygenates it, helping to prevent anaerobic decomposition. Additionally, the overflow siphon, equipped with a skimming inlet, further purifies the water by removing surface debris such as oils and other floating contaminants, thereby enhancing the overall quality of the stored water.

Key Features:

• Designed to accommodate roof sizes up to 450 square meters per kit
• Features a two-step cleaning system that functions independently of the flow rate, enhancing filtering efficiency
• Strategically positioned filter cartridge for continuous dirt removal
• Constructed to be frost resistant
• Self-cleaning and low maintenance design
• Easily removable filter insert for convenient cleaning
• Compatible with 110 mm (4") downpipes
• Weighs 6.2 kg
• Equipped with a siphon overflow and a skimming inlet
• Siphon overflow pipe fits a 130 mm hole in the storage tank wall
• Calmed inlet designed to prevent disturbance of sediment in the tank
• Calmed inlet also ensures fresh water is directed to the lower area of the tank, promoting complete and regular water replenishment
• Wall bracket not included
