Hargreaves Cast Iron Guttering FAQs

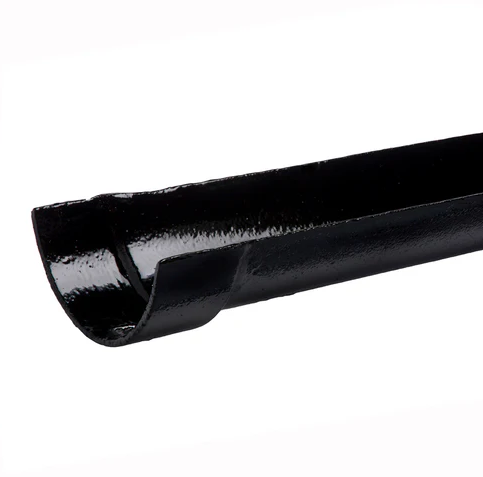

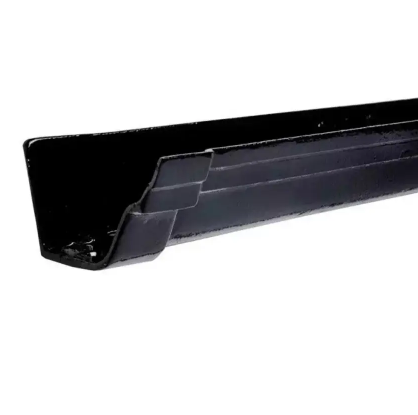

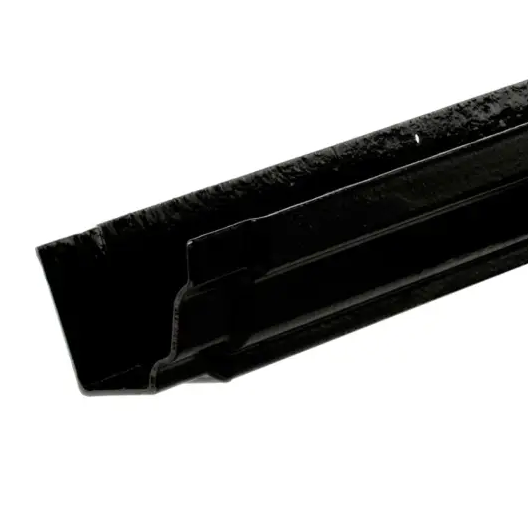

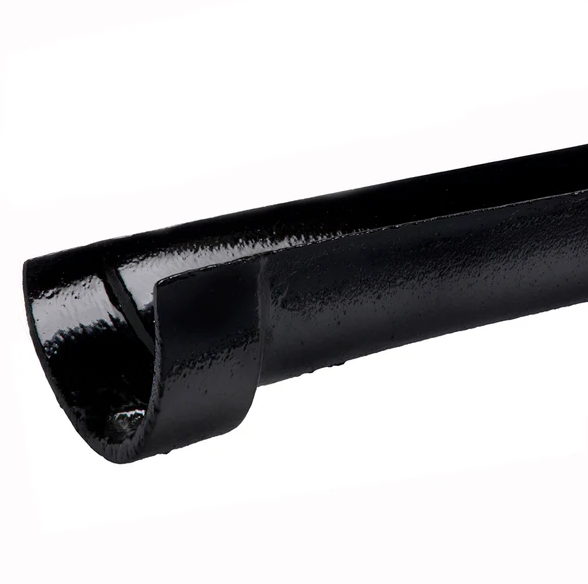

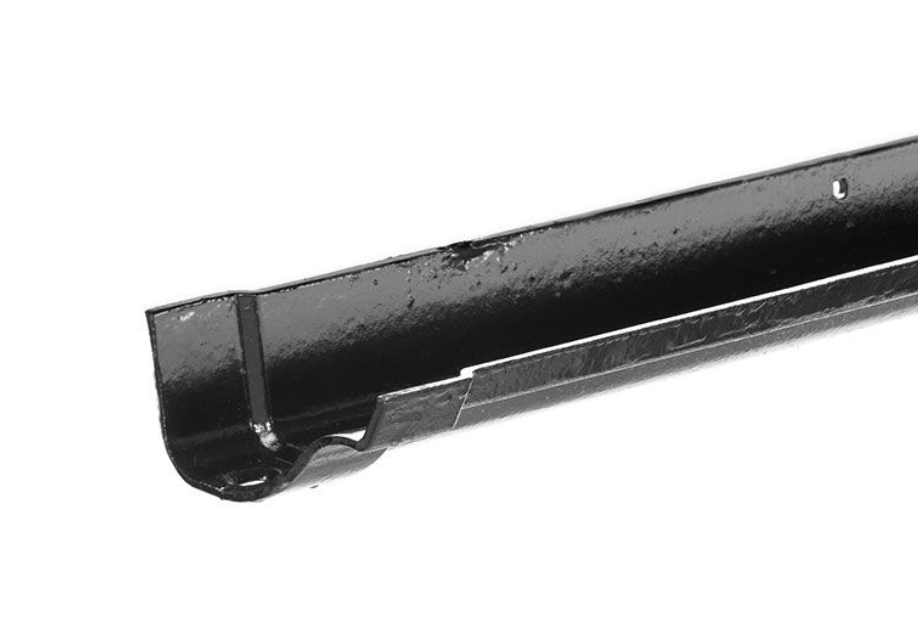

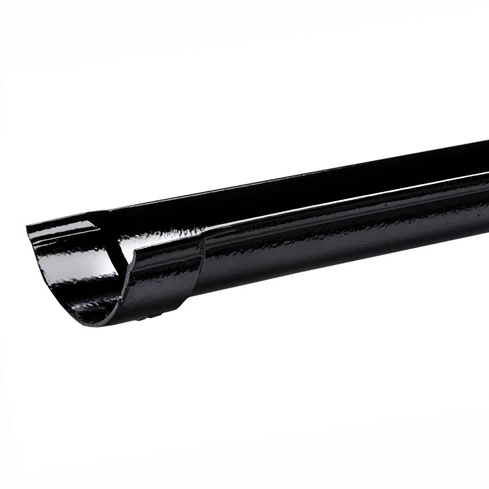

We offer the full range of Hargreaves cast iron profiles in the Premier range, including Plain Half Round, Beaded Half Round, Notts OG, G46, and Moulded guttering. These cater to different aesthetic and functional preferences.
Gutters are joined using a low modulus silicone sealant or rubberised bitumen mastic.
Additionally, you can use the Hargreaves Gutter Jointing Kit (HR0006) with EPDM seals and bolts for Half Round profiles, simplifying installation
Yes. Gutters can be cut using a powered disc cutter or hacksaw. Ensure no metal filings remain, as they can stain the painted surface. Any cut surfaces should be primed and painted immediately

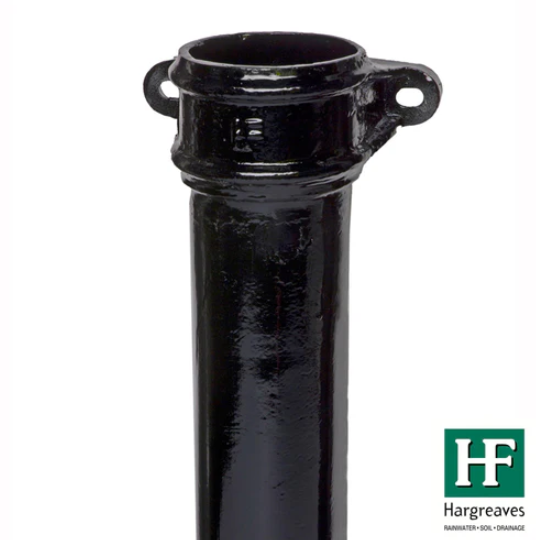

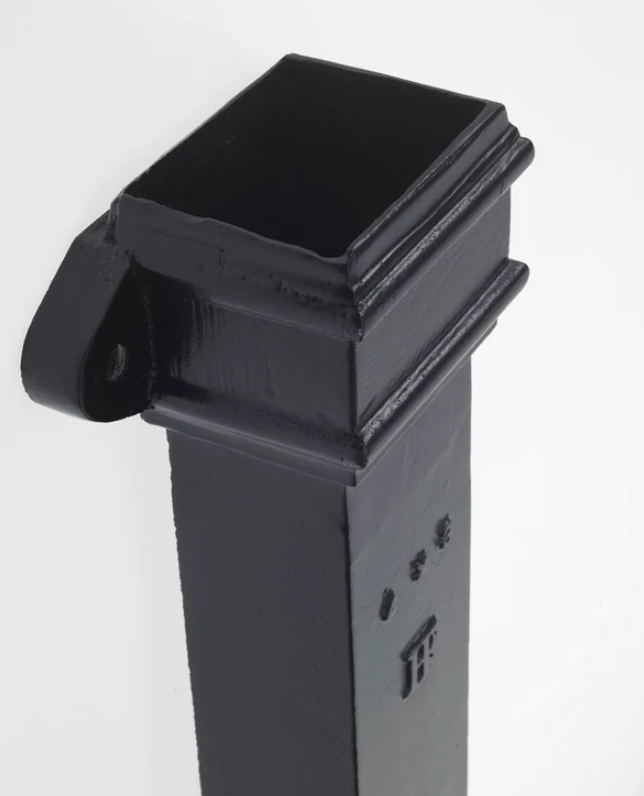

Eared pipes are fixed using large-headed pipe nails into wall plugs.
Uneared pipes require fixings like holdfasts, pipe brackets, or earbands—all of which are available from us.
Start with a bracket 150mm from the end of the gutter run, with subsequent brackets no more than 900mm apart. Use a string line to ensure alignment and a gentle fall toward outlets
Yes, the Premier range includes bends, offsets, shoes, branches, brackets, diverter kits, access pipes, loose sockets, and more—available in a variety of sizes (65mm to 150mm).
We can offer any RAL colour you'd like! Our popular colours are galvanised, black and anthracite grey. These are also available on a next working day delivery basis.

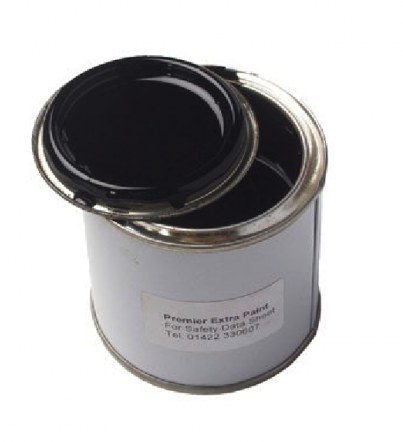

Inspect annually for damage or paint wear. Touch up scuffs or cuts promptly using Hargreaves semi-gloss paint. In coastal or polluted environments, more frequent maintenance may be necessary
Standard delivery is 2–3 working days, subject to stock availability.
Any other questions?
Read the full buyer's guide here.
If we still haven't answered your question, you can contact us below and we will get back to you as soon as possible.
Recently viewed
Primed vs Pre-Painted Hargreaves Cast Iron Guttering – Which Is Right for Your Project?
As one of the UK’s leading suppliers of Hargreaves cast iron guttering, we offer both primed and pre-painted options to suit a range of project requirements and budgets.
Pre-painted cast iron guttering is factory-coated with a high-performance, three-layer paint system, delivering a smooth, durable finish that far exceeds typical on-site painting results. This finish has been developed specifically for cast iron, ensuring a longer lifespan and reduced maintenance. Available in classic black as standard, pre-painted guttering is ready to install and typically delivered within 2–3 working days — ideal for fast-track projects or listed building renovations where appearance and longevity are key.
Primed cast iron guttering, on the other hand, is a more cost-effective option. Supplied with a temporary grey oxide primer, these components must be painted on-site before or immediately after installation to prevent corrosion. This gives you the flexibility to match or contrast the finish with your existing architectural style, which is particularly useful for heritage properties or custom paint schemes.
Whether you choose primed or pre-painted, our full range of Hargreaves guttering products is manufactured to BS460 standards for traditional cast iron rainwater systems, ensuring robust performance and timeless aesthetics.
Why Choose Hargreaves Cast Iron Guttering?
Hargreaves cast iron systems are renowned for their 100+ year lifespan when properly installed and maintained. With robust resistance to physical damage, thermal expansion, and UV exposure, they outperform lightweight alternatives like aluminium or plastic—especially in harsh UK weather.
Manufactured to BS 460 standards, Hargreaves' Premier Rainwater range is ideal for listed buildings, conservation areas, and traditional new builds. It replicates the original sand-cast iron profiles found on period properties, making it a top choice for planning and conservation officers.

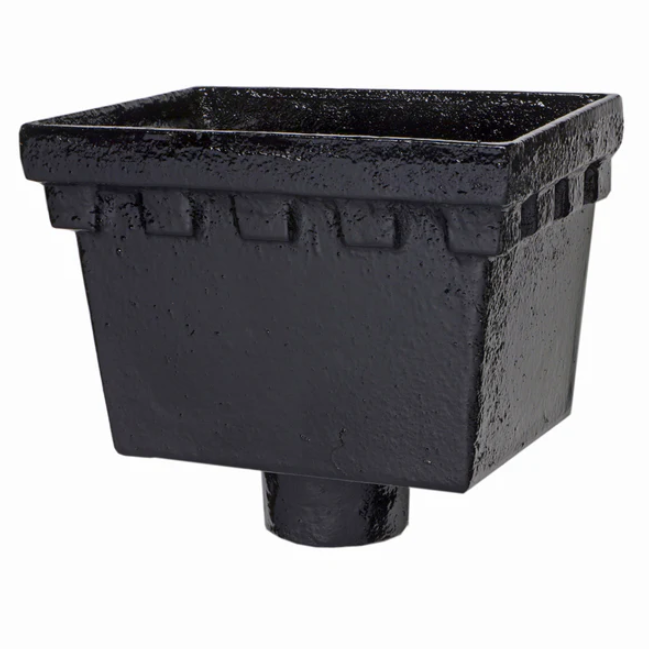

We supply the complete Hargreaves range—including gutters, downpipes, fittings, hoppers, joints and custom architectural castings.
Whether you’re restoring a Georgian townhouse or specifying a drainage system for a stately home, our team is here to help with advice, stock availability, and fast nationwide delivery.

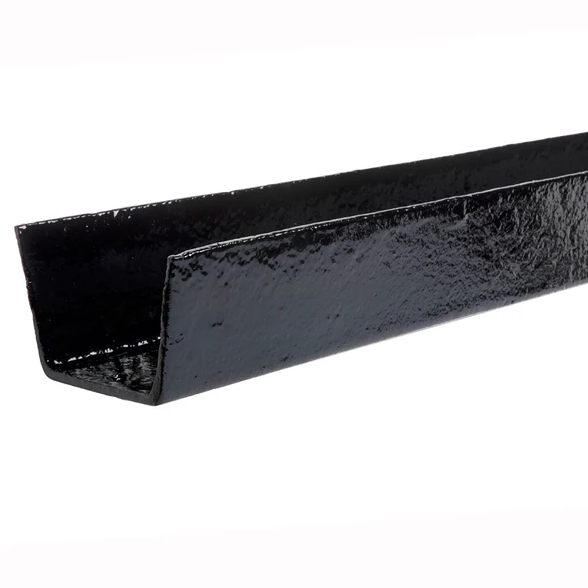

Rectangular & Box Gutter Also Available
In addition to the popular Half Round and OG profiles, we also supply a full range of rectangular and box cast iron gutters, ideal for both traditional and contemporary applications.
Rectangular and box gutters offer a clean, linear appearance that suits a wide variety of architectural styles—from Georgian townhouses to modern restorations. These profiles are often specified where a more angular, robust aesthetic is required or where higher capacity is needed for handling large roof areas.
Key Benefits:
- In keeping with original period designs for heritage-sensitive projects.
- Ideal for larger roof spans and commercial buildings.
- Can be used with a wide choice of rainwater pipes and decorative hopper heads.
- Available in grey oxide primer for on-site painting or pre-painted black for faster installation and long-term protection.
