Description

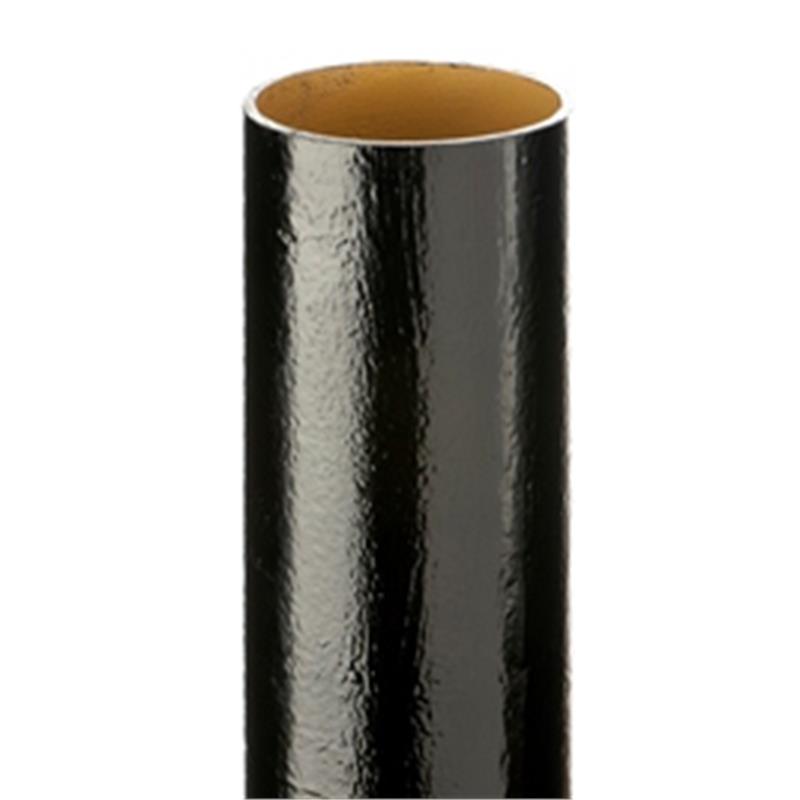

The Hargreaves TX4001A 100mm Cast Iron Push-Fit Soil Pipe (1.8m) is a high-performance drainage solution designed to combine the traditional strength of cast iron with modern, time-saving installation.
Part of the Hargreaves Traditional Express (TX) system, this pipe features a push-fit connection with EPDM rubber sealing rings—eliminating the need for caulking or sealing. This significantly reduces installation time while maintaining a secure, leak-resistant joint.
Manufactured from robust cast iron and factory-coated with a durable black gloss finish, the TX system delivers long-term reliability for both internal and external soil and waste applications. An internal epoxy coating provides additional protection, ensuring smooth flow and resistance to corrosion over time.
Ideal for contractors and specifiers, this system offers a “fit-and-forget” solution with a lifespan exceeding 100 years when correctly installed—making it a cost-effective choice over the lifetime of a building.
Key Features
- 100mm cast iron push-fit soil pipe (1.8m length)
- Part of Hargreaves Traditional Express (TX) system
- Push-fit joints with EPDM seals – no caulking required
- Fast installation compared to traditional cast iron systems
- Durable black gloss external coating for corrosion resistance
- Internal epoxy lining for improved flow and longevity
- Suitable for internal and external soil & waste systems
- Fully recyclable material
Performance & Benefits
- Saves installation time – no sealing or specialist skills required
- Long service life – cast iron systems can exceed 100 years
- Low maintenance – resistant to wear, impact, and corrosion
- Reliable sealing – EPDM gaskets provide consistent joint performance
- Adaptable system – easy to modify for future building changes
Technical Specifications
- Manufacturer: Hargreaves
- Product Code: TX4001A
- System: Traditional Express (TX)
- Material: Cast Iron (bitumen-coated externally)
- Internal Diameter: 97.5mm
- External Diameter: 110mm
- Wall Thickness: 6mm
- Length: 1.8m
- Connection Type: Push-fit
- Finish: Black gloss (external), epoxy coated (internal)
- Standard: BS416
Installation Notes
- Push-fit system – simply lubricate gasket and insert pipe
- Requires compatible TX sockets/fittings (sold separately)
- No specialist tools or training required
- Suitable for new installations and retrofit projects
Important Information
- Additional sockets required depending on installation method
- Alternative lengths (3m) and RAL colour finishes available on request
- Coastal coating options available for marine environments
