Description
*Comes with Free Fixing Kit

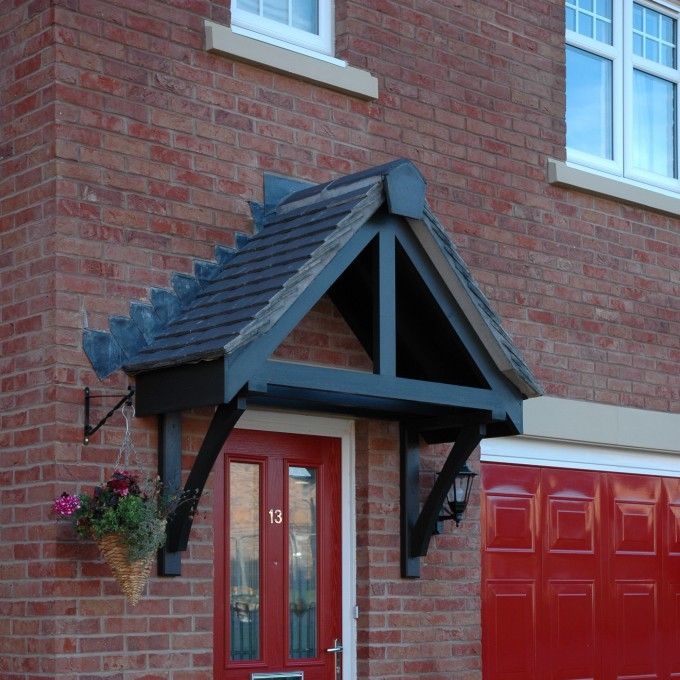

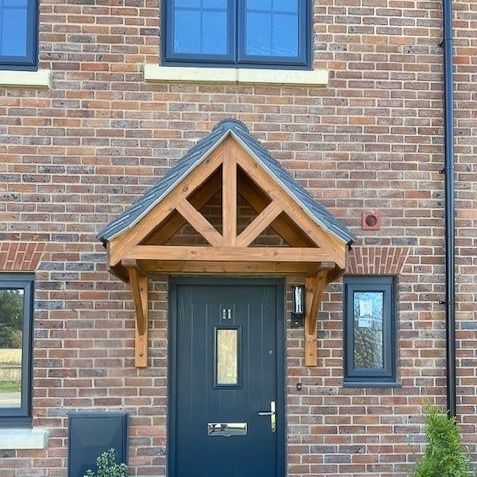

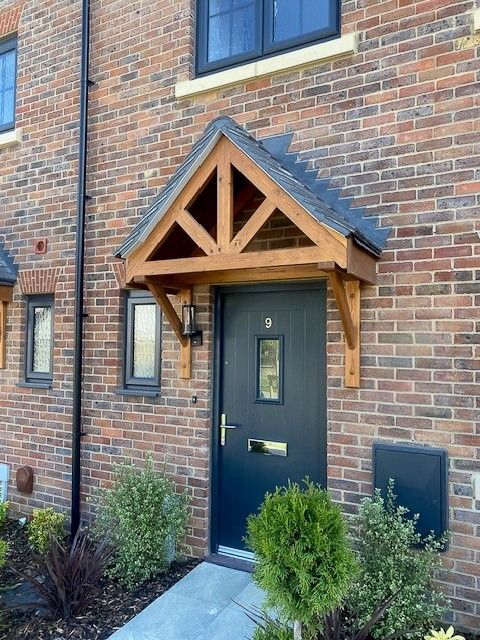

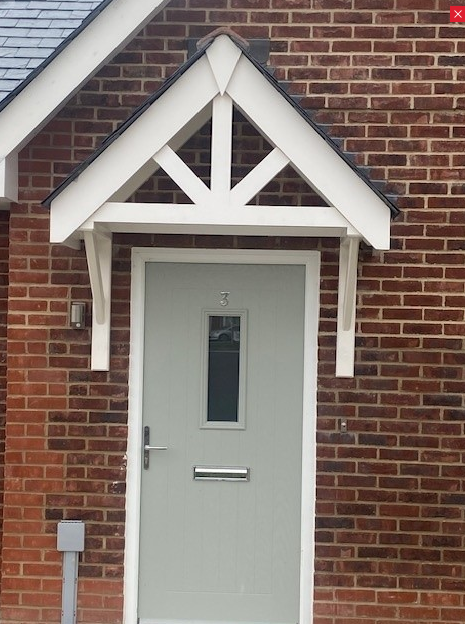

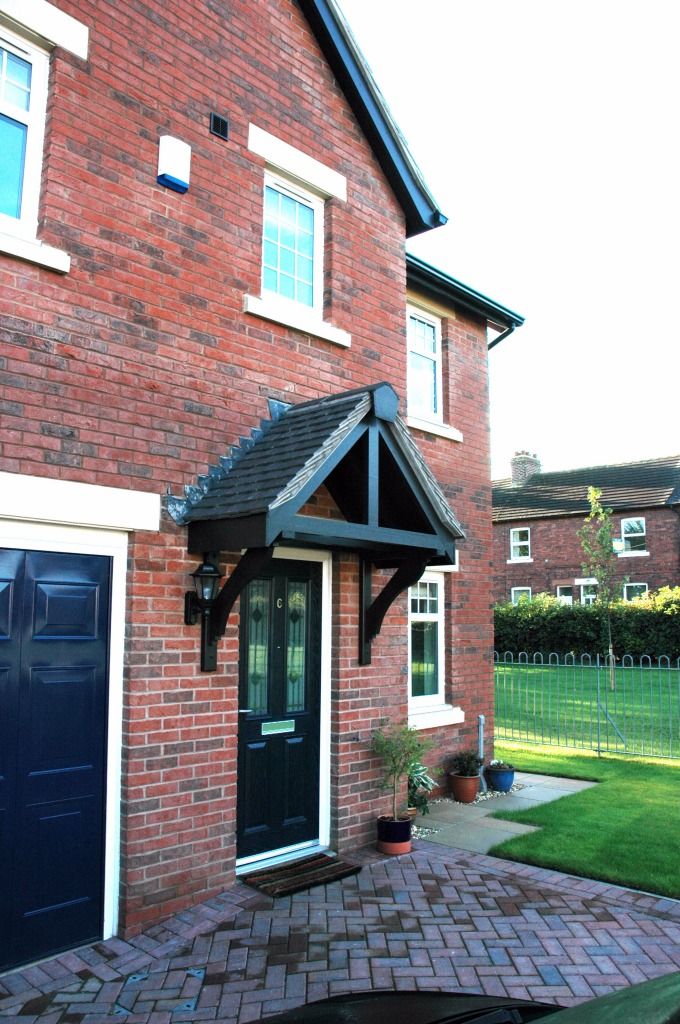

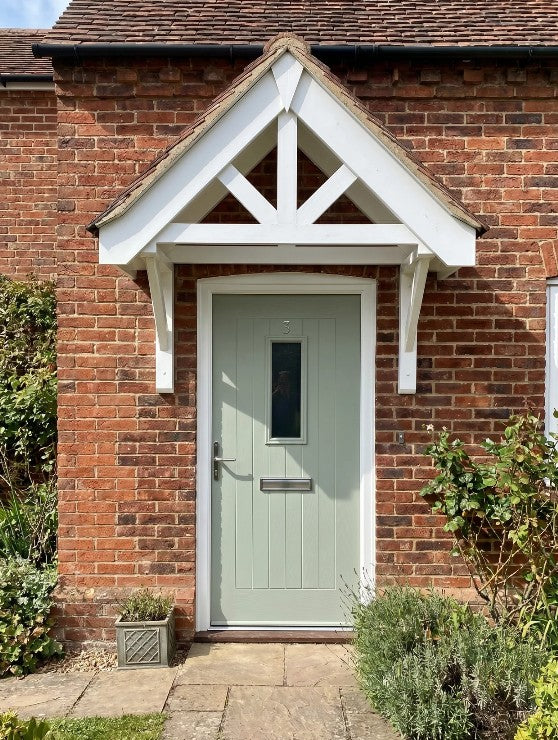

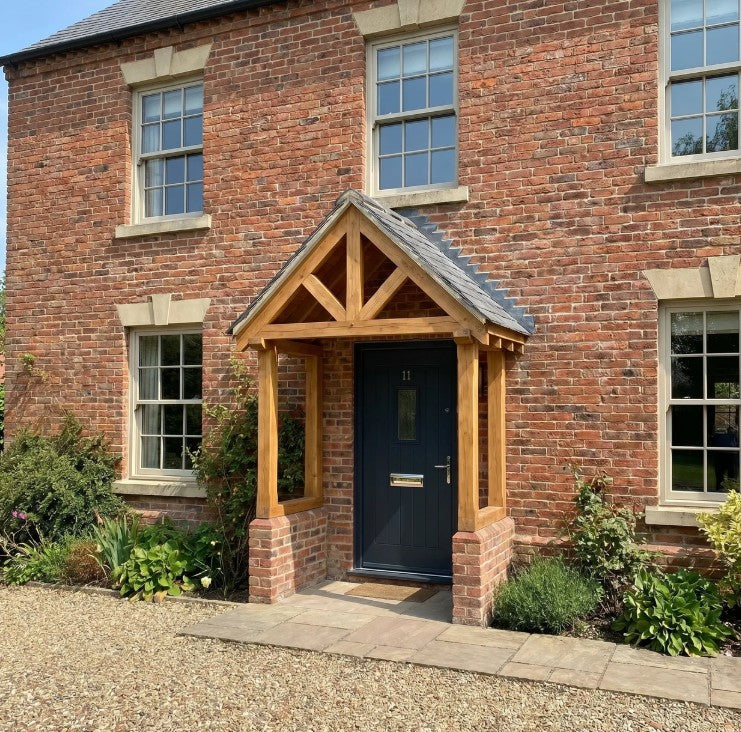

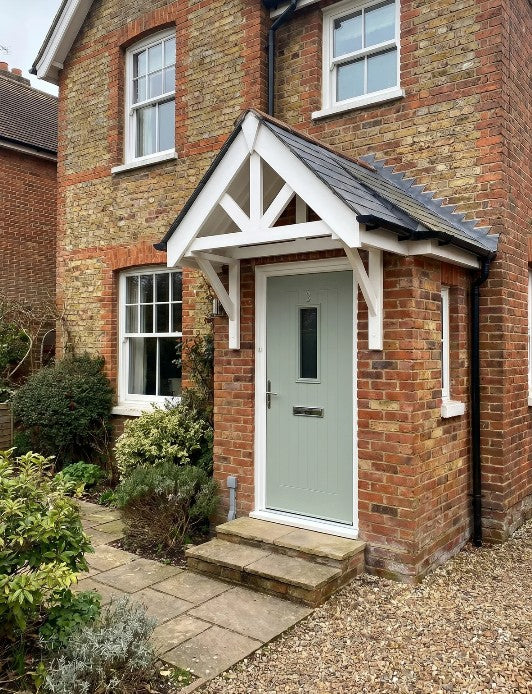

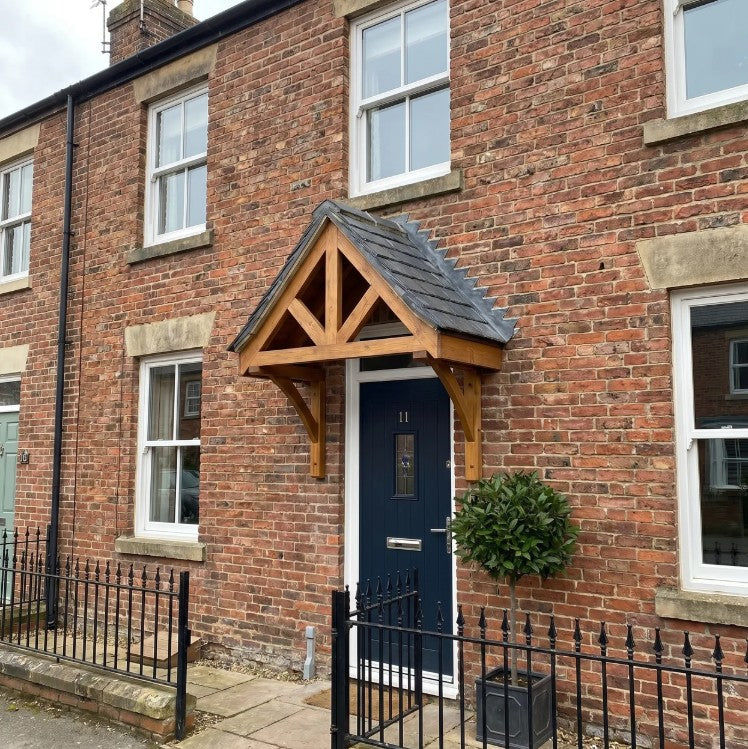

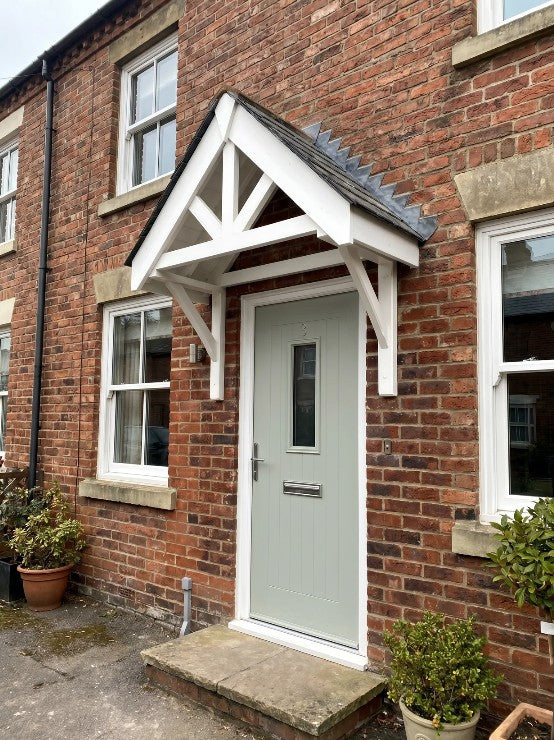

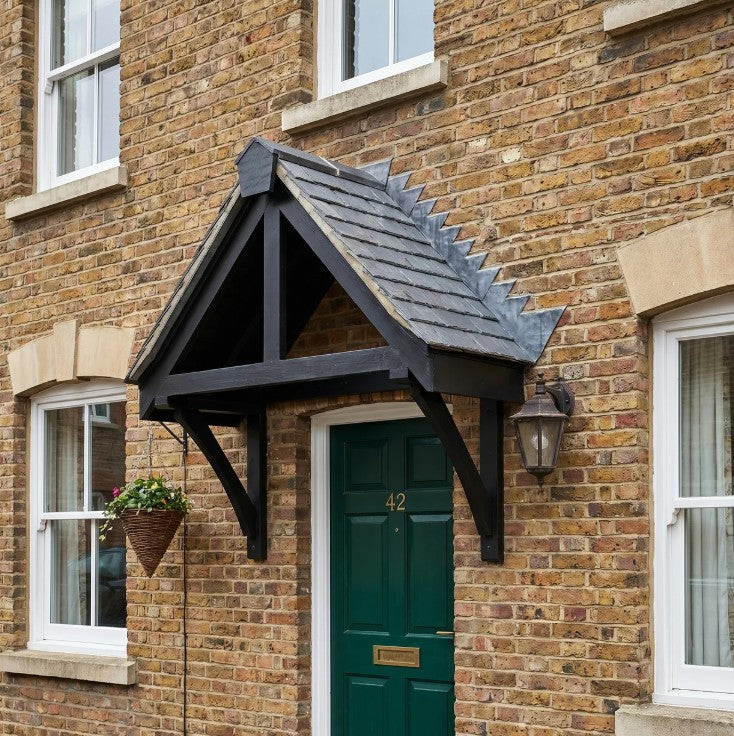

The Ashworth Dual Pitched Timber Canopy is a British-made, premium entrance canopy designed to enhance residential properties with a classic dual-pitch roof and durable timber construction. Suitable for single homes or multi-property developments, it offers long-lasting performance and strong kerb appeal.
Manufactured from FSC-certified timber, each canopy is inspected for quality, with any imperfections professionally filled for a smooth, decoration-ready finish. All timber is treated with a clear industrial preservative to protect against fungal decay while allowing on-site painting or staining.
Designed to accept tiles, slates, or felt shingles, the Ashworth canopy can be matched to existing roofing materials. Supplied with a pair of gallows brackets and supported by structural calculations, final support selection should be confirmed by a qualified professional.

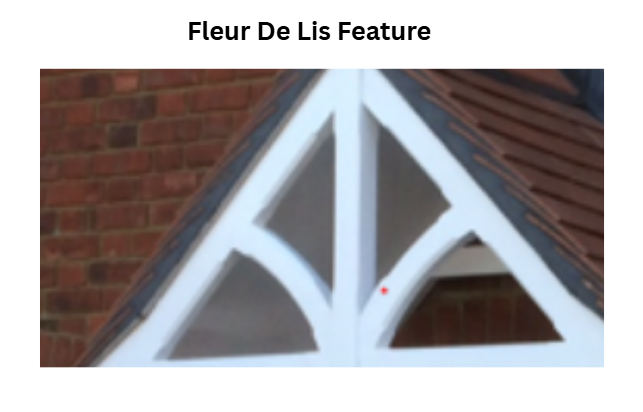

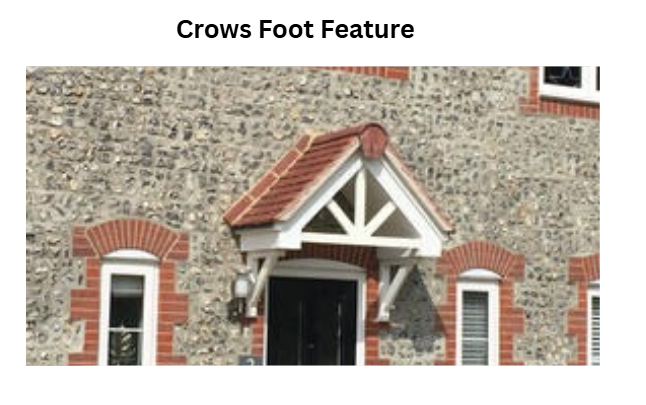

Optional decorative trusses are available, including Fleur-de-Lis and Crows Foot designs, or a minimalist finish can be chosen. ASHWORTH4 includes both front and rear feature trusses. Fixing kits and next-day delivery are available. Delivery is charged separately.
Technical drawings and installation guidance are available to download.
Key Features
- Made in Britain
-
Dual-pitched timber canopy suitable for modern and traditional homes
-
Compatible with tiles, slate, or felt roofing (roof coverings not supplied)
-
Supplied with a pair of structurally assessed gallows brackets
-
FSC-certified timber (FSC Mix 70%) for responsible sourcing
-
Timber inspected for faults and refined using two-part resin filler
-
Industrial wood preservative treatment to BS/EN 335-1:1994 and EN599-1
-
Ready to paint or stain for full customisation
-
Choice of decorative Fleur-de-Lis or Crows Foot trusses, plus minimalist options
-
ASHWORTH4 includes front and rear feature trusses
-
Optional fixing kit available
-
Next-day delivery available (prices exclude delivery)
-
Full technical drawings and installation instructions available
-
The canopy projection can be altered and we can offer different brackets. Please see our gallow brackets for an alternative bracket and we will quote for you.
Size Options
| SKU | Width (mm) | Projection (mm) | Height Above Door Head (mm) | Max Brick Opening (mm) | Pitch | Weight (kg) |
|---|---|---|---|---|---|---|
| ASHWORTH1 | 1690 | 700 | 685 | 1300 | 35° | 27 |
| ASHWORTH2 | 1735 | 700 | 890 | 1300 | 45° | 28 |
| ASHWORTH3 | 2000 | 900 | 800 | 1435 | 35° | 30 |
| ASHWORTH4 | 1620 | 600 | 895 | 1290 | 45° | 28 |
| ASHWORTH6 | 1400 | 700 | 700 | 1025 | 45° | 26 |
