Description

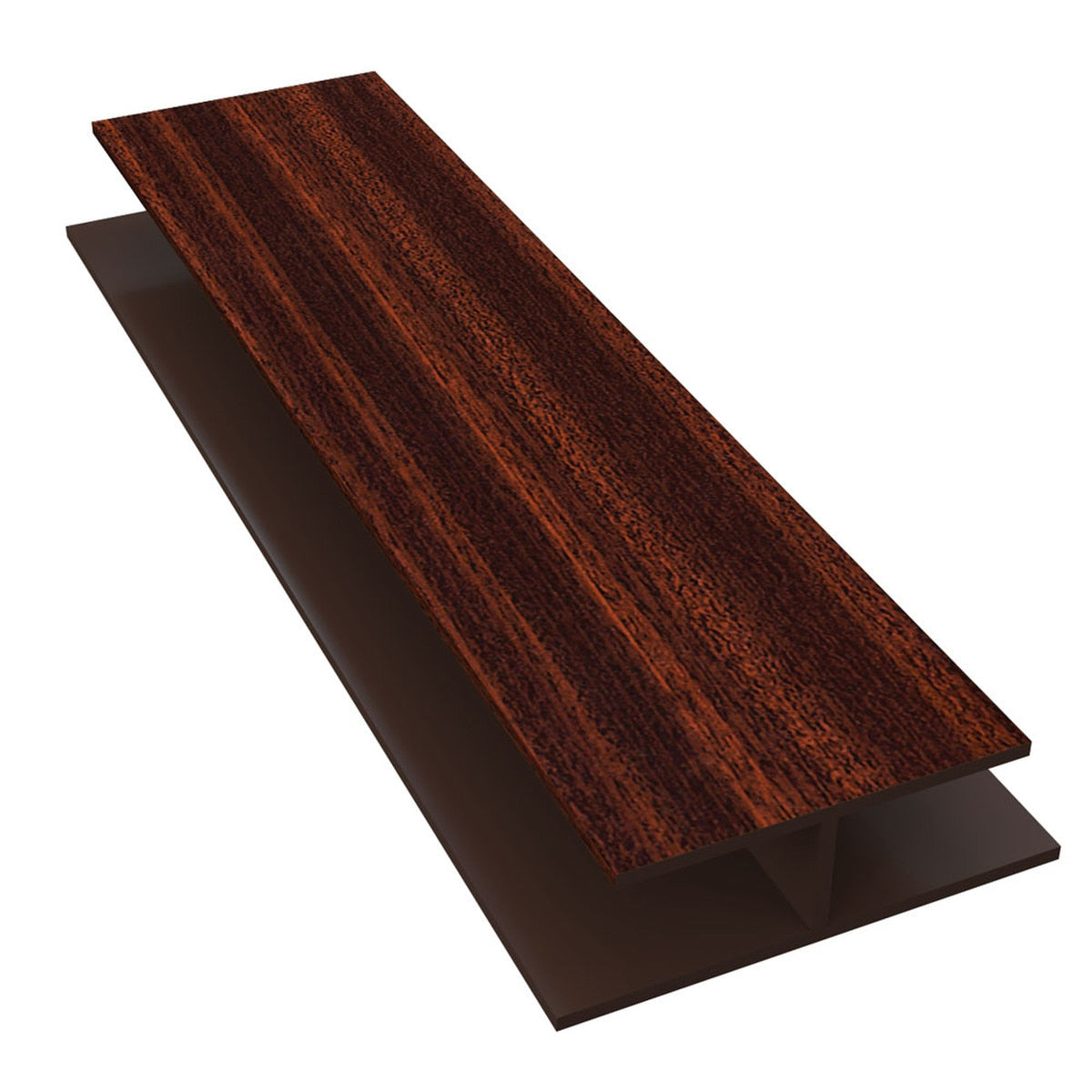

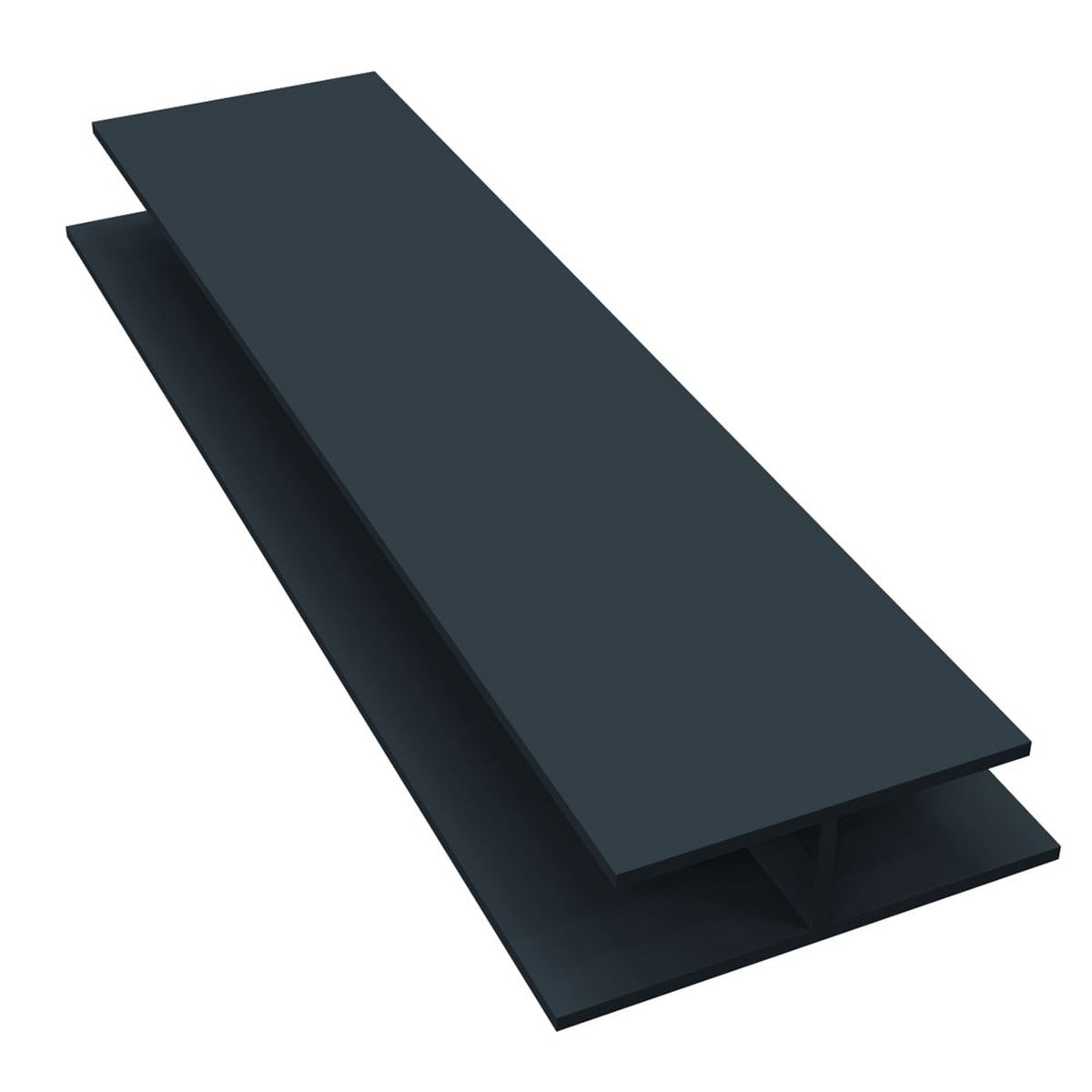

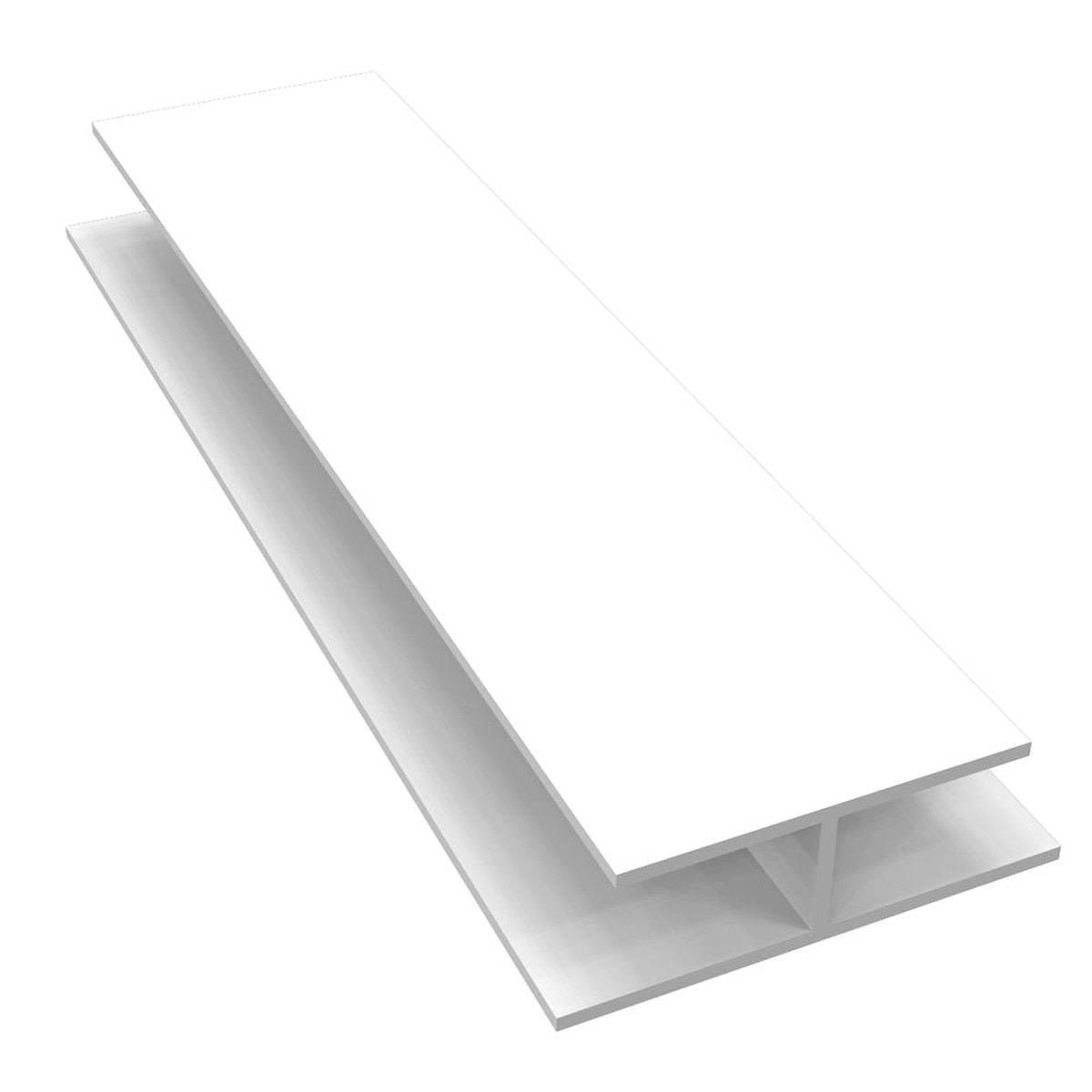

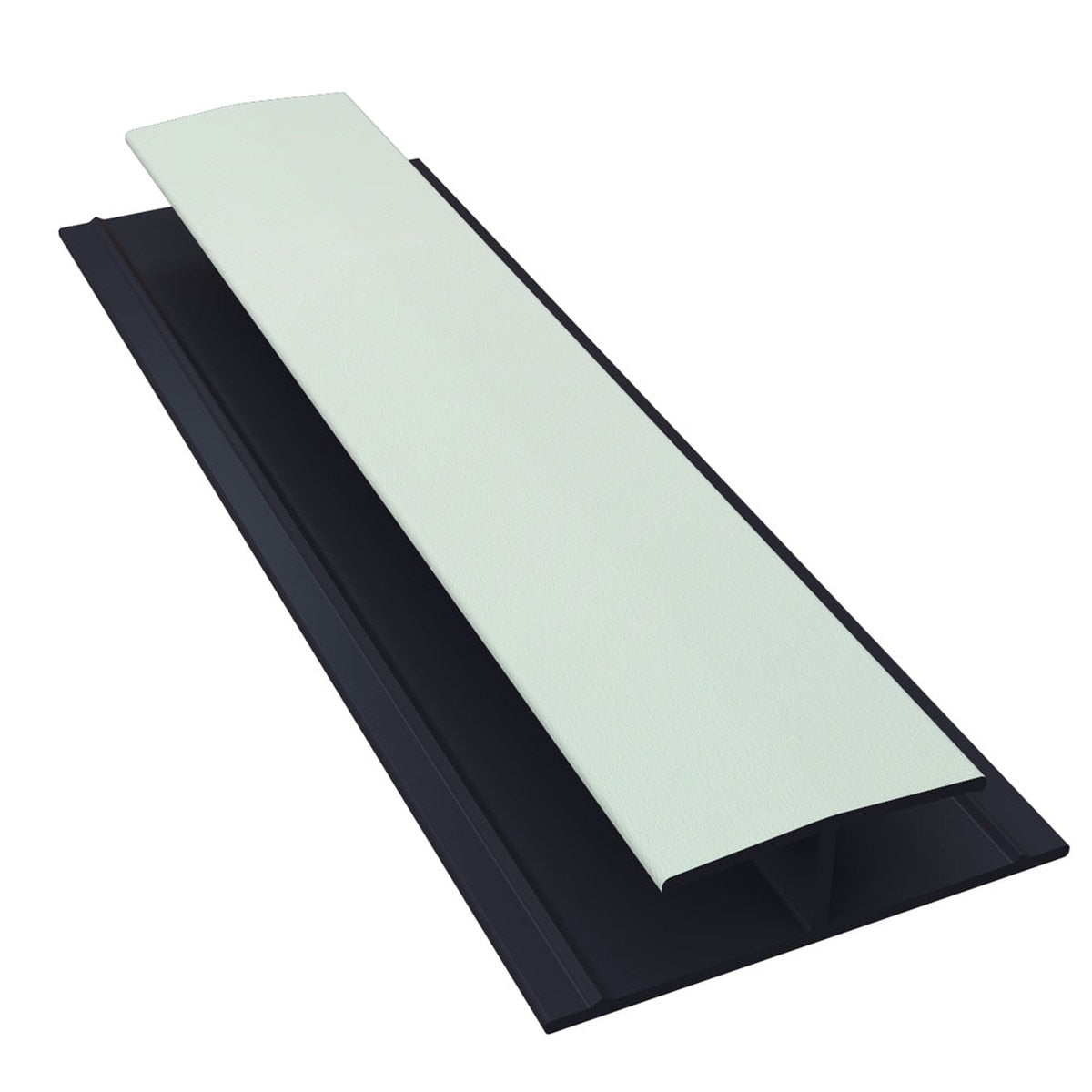

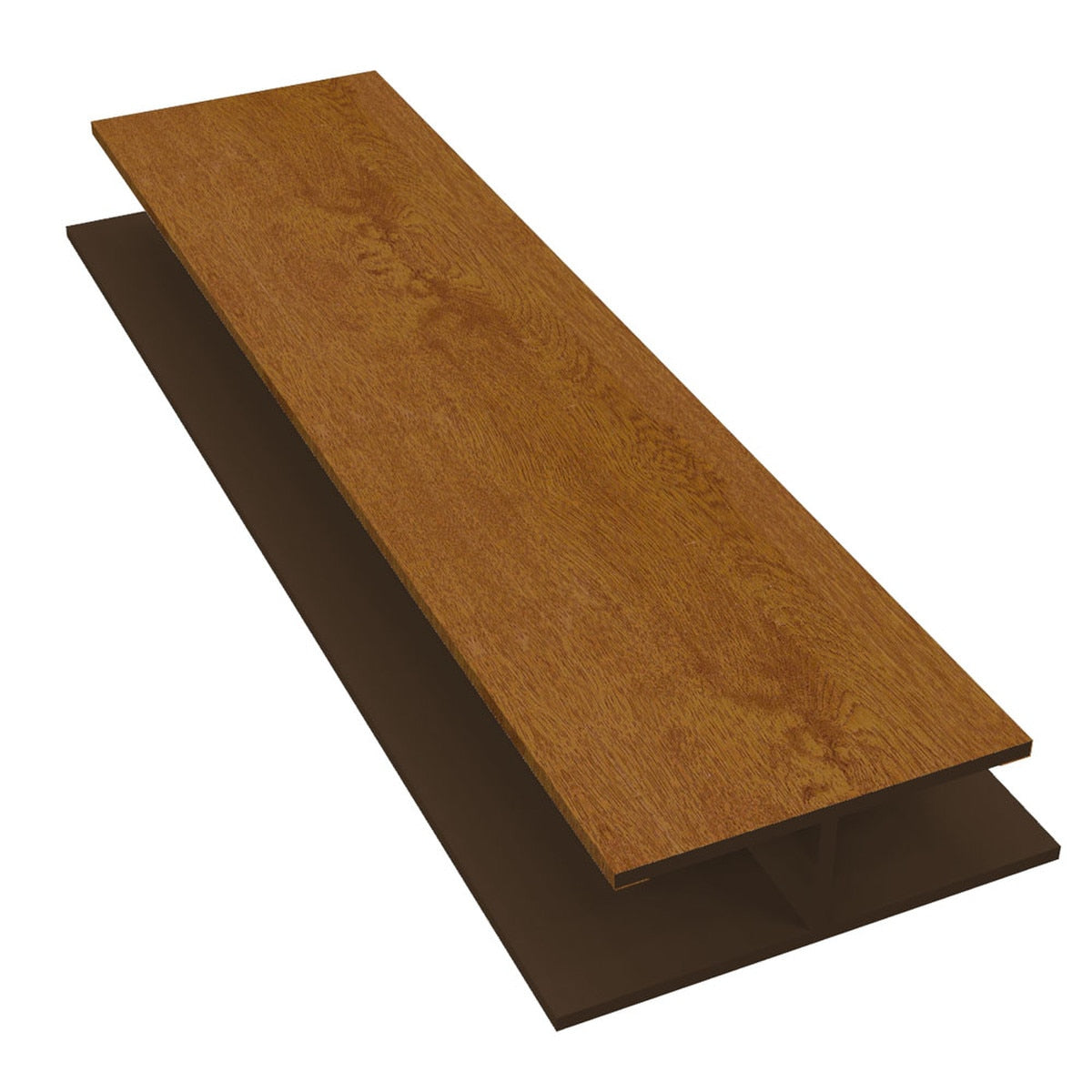

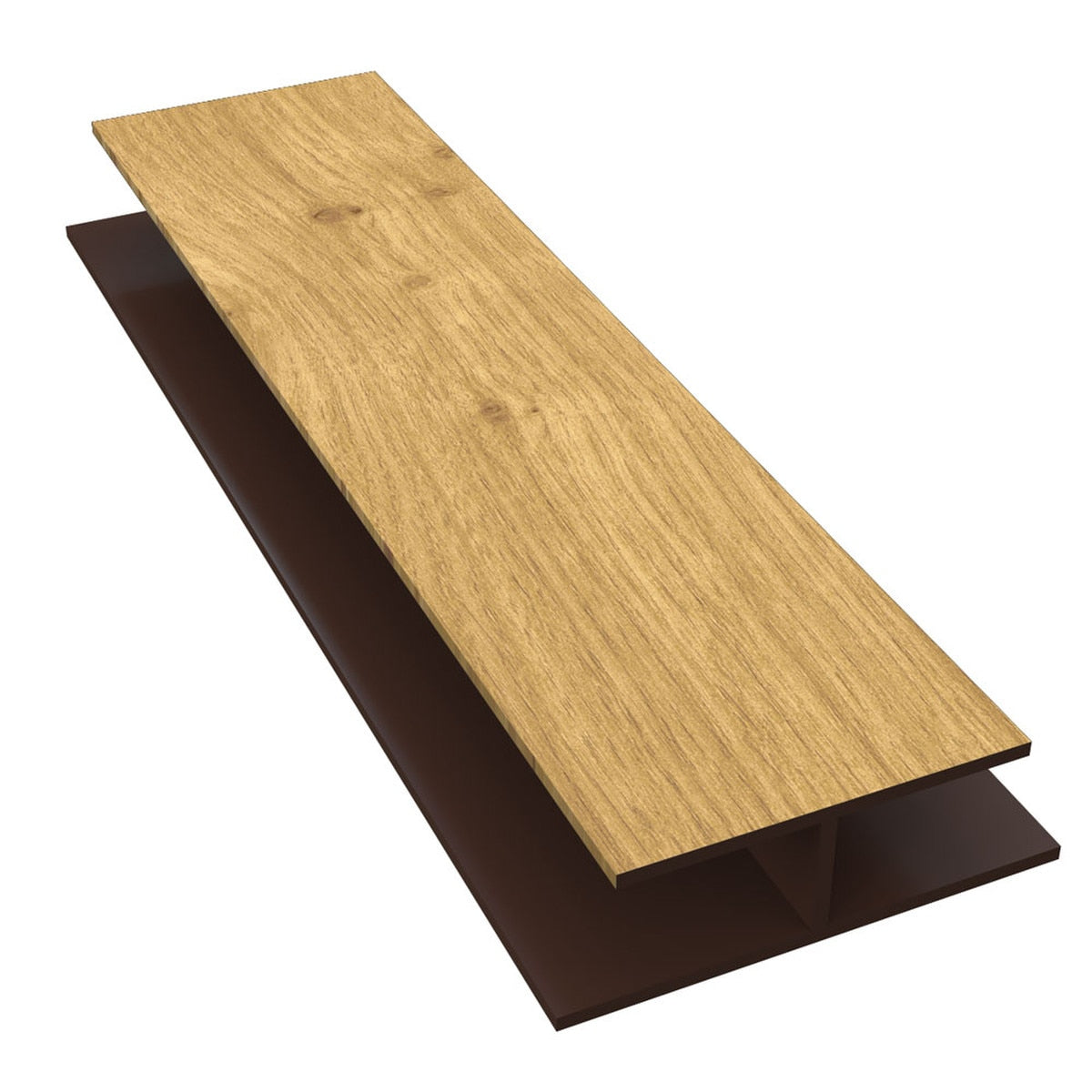

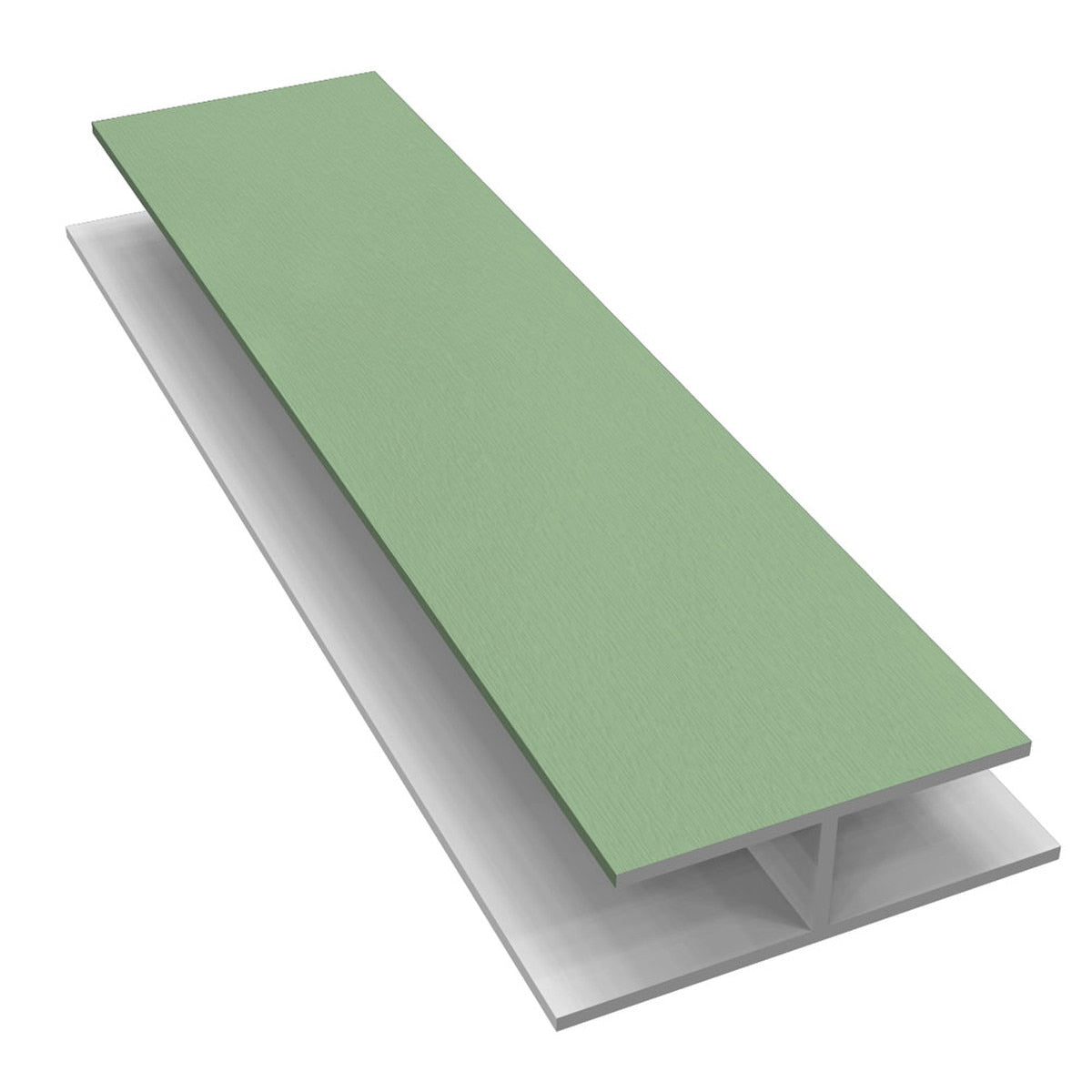

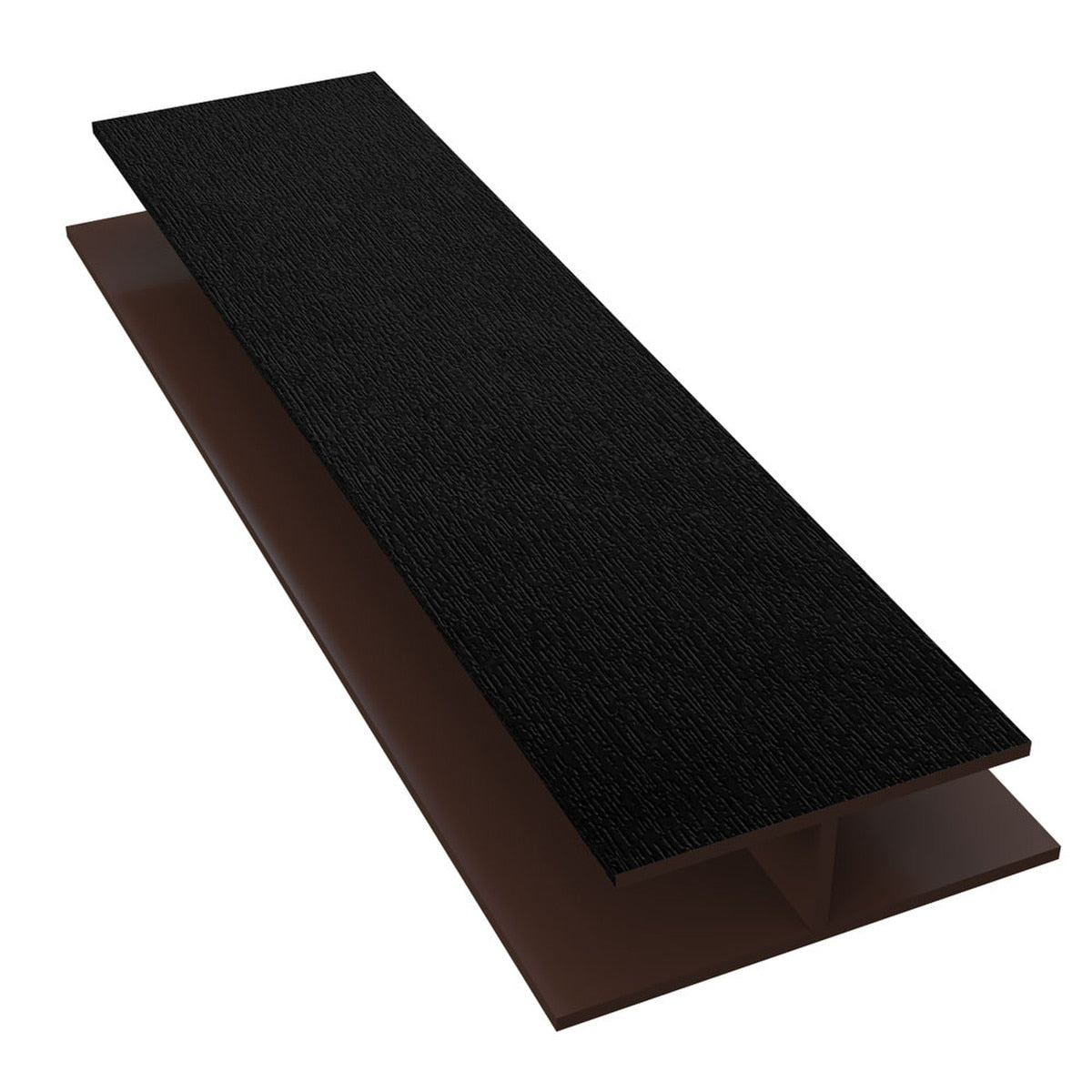

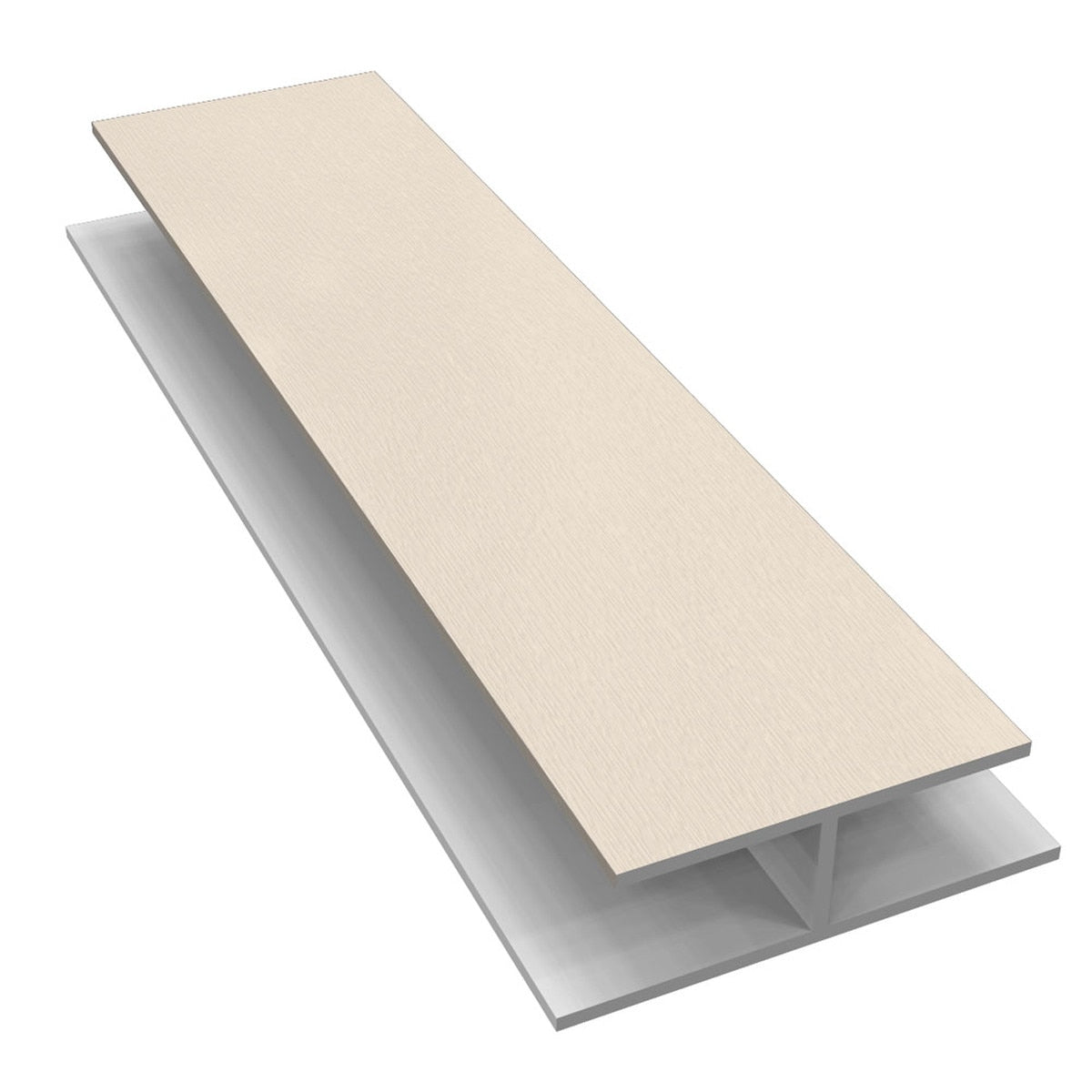

The Freefoam 5m uPVC Soffit Joint Trim, also known as an H-section soffit joiner, is designed to create a neat straight connection where two compatible soffit boards meet end-to-end. Instead of leaving an exposed butt joint, the F106 profile receives the edge of each board and gives the underside of the roofline a cleaner, more professional finish.
Supplied in a full 5 metre length, the trim can be cut on site to suit the installation and is available in a range of matching Freefoam colours and woodgrain finishes.
Why Use the Freefoam F106 Soffit Joint Trim?
-
Joins soffit boards on a straight run
Designed specifically for situations where one soffit board finishes and another continues in the same direction. -
Creates a tidy H-section joint
The profile accepts a board from each side, helping conceal the meeting point between the two soffit sections. -
Full 5 metre length
Can be cut down on site to create the individual joint pieces required for the project. -
Allows for uPVC movement
Designed to be used with the correct expansion allowance so the boards can naturally expand and contract. -
Matching colour options
Available in White, contemporary greys and blacks, plus traditional woodgrain finishes to coordinate with the soffit boards. -
Low-maintenance uPVC
No painting, staining or regular timber treatment is required.
What Is This Trim Used For?
The F106 is a straight soffit board joiner. It is used where two boards need to meet end-to-end beneath the eaves.
It is not a corner trim or an edge finishing trim. If the soffit is changing direction or finishing against a wall, a different Freefoam soffit trim may be required.
Important Expansion Gap
uPVC expands and contracts as temperatures change, so the correct movement allowance should be left when fitting the boards.
- At a board end: allow approximately 6mm expansion clearance.
- Where two boards meet in the F106 joiner: allow approximately 12mm total clearance between the board ends.
This movement allowance is important for helping prevent the soffit boards from becoming tight or distorted after installation.
How Is the Soffit Joint Trim Installed?
- Cut the F106 trim to the required soffit depth.
- Position the joiner where the two soffit boards will meet.
- Insert one board into each side of the H-section profile.
- Maintain the required expansion clearance between the board ends.
- Make sure the soffit boards and trim are properly supported by the roofline structure.
Product Specifications
- Brand: Freefoam
- Product code family: F106
- Product type: uPVC soffit joint trim / H-section joiner
- Length: 5000mm / 5m
- Weight: Approximately 0.65kg
- Application: Straight soffit board joints
- Can be cut: Yes
Frequently Asked Questions
What does the F106 soffit trim actually do?
It joins two soffit boards together along a straight run and covers the connection between them.
Do I need one for every soffit board?
No. It is only required where two board lengths need to meet end-to-end.
Can the 5m trim be cut?
Yes. It is designed to be cut on site to suit the soffit depth and number of joints required.
How much expansion gap should I leave?
Allow approximately 6mm at a board end, or 12mm total when two boards meet within the joiner.
