Description

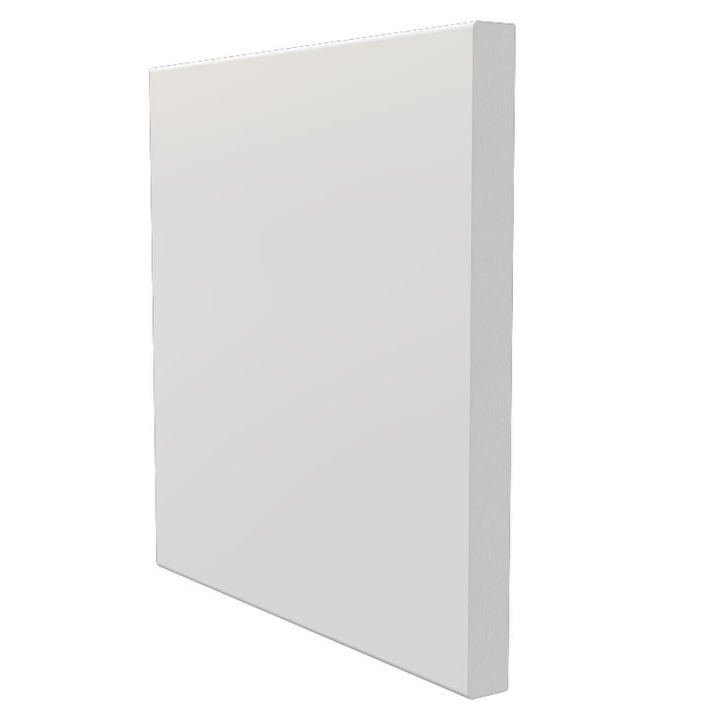

The Freefoam Magnum Flat uPVC Fascia Board is a 16mm full replacement fascia designed for clean, flush roofline details where a traditional square-leg or decorative fascia profile is not required. With its simple flat face and no lower return, it is particularly useful for exposed-rafter roofs, low roof projections and other applications where a straight fascia edge gives the neatest finish.
Supplied in 5 metre lengths and stocked in White across seven widths, this is a proper replacement fascia rather than a thin capping board. It is suitable for new-build and refurbishment projects where the existing fascia is being removed and replaced.
Why Choose Freefoam Magnum Flat Fascia?
-
16mm full replacement fascia
Designed to form the main fascia board rather than simply covering existing timber. -
Clean flat profile
No decorative moulding or square-leg return, making it ideal where a simple flush roofline is preferred. -
Ideal for exposed-rafter applications
A practical option for roof designs where the rafter ends remain visible or where there is little roof overhang. -
Seven stocked widths
Choose from 100mm through to 300mm to suit the depth required by the roof construction. -
Long 5m boards
Helps reduce unnecessary joints across straightforward roof runs. -
Low-maintenance White uPVC
No routine painting, staining or timber treatment is required. -
Can be cut on site
Boards can be trimmed to suit individual roof dimensions and detailing. -
Matching Freefoam roofline accessories available
Compatible joints, corners and associated components can be used to achieve a tidy finished installation.
Available Sizes
- 100mm x 16mm x 5m
- 125mm x 16mm x 5m
- 150mm x 16mm x 5m
- 175mm x 16mm x 5m
- 200mm x 16mm x 5m
- 250mm x 16mm x 5m
- 300mm x 16mm x 5m
All stocked variants on this product page are supplied in White.
What Is Flat Fascia Used For?
Unlike square-leg fascia, the Flat Fascia profile does not have a projecting return along the lower edge. This makes it useful where the roofline needs a straight, uncomplicated face rather than a deeper moulded profile.
Typical applications include:
- Exposed-rafter roof details
- Flush rooflines
- Low roof projections
- Garages and outbuildings
- Extensions
- New-build rooflines
- Full replacement fascia projects
In suitable roof constructions it can also be used where a conventional soffit arrangement is not required, although the complete roof and ventilation design should always be considered before installation.
Full Replacement Fascia, Not a Cover Board
This Freefoam Magnum Flat Fascia is a 16mm full replacement board. It is designed for projects where the original fascia is being removed or where a new fascia is required as part of the roof construction.
If the existing timber fascia is still sound and you simply want to cover it with uPVC, a thinner Freefoam fascia cover board or capping board would normally be the more appropriate option.
Choosing the Correct Width
Measure the vertical depth required by the roof construction before ordering. The correct fascia width depends on the position of the rafter ends, roof covering, gutter line and any soffit detail being used.
The narrower 100mm and 125mm boards are useful for compact or specialist roofline details, while the 200mm, 250mm and 300mm options provide greater coverage where a deeper fascia face is required.
Product Specifications
- Brand: Freefoam
- Range: Magnum Flat Fascia
- Product type: Full replacement uPVC fascia board
- Length: 5000mm / 5m
- Thickness: 16mm
- Widths: 100mm, 125mm, 150mm, 175mm, 200mm, 250mm and 300mm
- Colour: White
- Material: PVC-U / uPVC
- Profile: Flat fascia
- Application: New-build and full roofline replacement
Installation Advice
The roof structure should be sound, straight and properly prepared before the new fascia is fitted. Any rotten or damaged timber should be repaired before installation begins.
Use appropriate corrosion-resistant fascia fixings and follow Freefoam's recommended fixing centres and expansion allowances. Where guttering is being installed, the fascia and supporting structure must be suitable for the intended load and fixing arrangement.
It is also worth checking roof ventilation requirements before completing the fascia installation, particularly on flush rooflines or details where there is no conventional soffit.
Delivery Information
Stocked White Flat Fascia boards are normally delivered within 2–3 working days from the point of order. Larger quantities and certain UK delivery areas may occasionally require a little longer.
Frequently Asked Questions
Is this fascia designed for full replacement?
Yes. Freefoam Magnum Flat Fascia is a 16mm full replacement board for new-build and replacement roofline projects.
What is the difference between Flat Fascia and Square Leg Fascia?
Flat Fascia has a simple straight profile without the lower return found on Square Leg fascia. It is often chosen for flush rooflines and exposed-rafter details.
Can I use this to cover existing timber fascia?
It is primarily designed as a full replacement fascia. If the existing timber is staying in place, a purpose-made fascia cover board is usually more appropriate.
What widths are available?
The stocked White range is available in 100mm, 125mm, 150mm, 175mm, 200mm, 250mm and 300mm widths.
Can the boards be cut?
Yes. The 5m lengths can be cut on site to suit the required roof dimensions.
A Clean Fascia for Flush and Exposed Rooflines
The Freefoam Magnum Flat uPVC Fascia Board is a straightforward solution when a plain, flush roof edge is the priority. Its 16mm full replacement construction, seven width options and clean White finish make it particularly useful for exposed-rafter roofs, extensions, garages and modern roofline details where a conventional square-leg fascia would add unnecessary projection.
