Rainwater harvesting Kit C - 800m2 filter

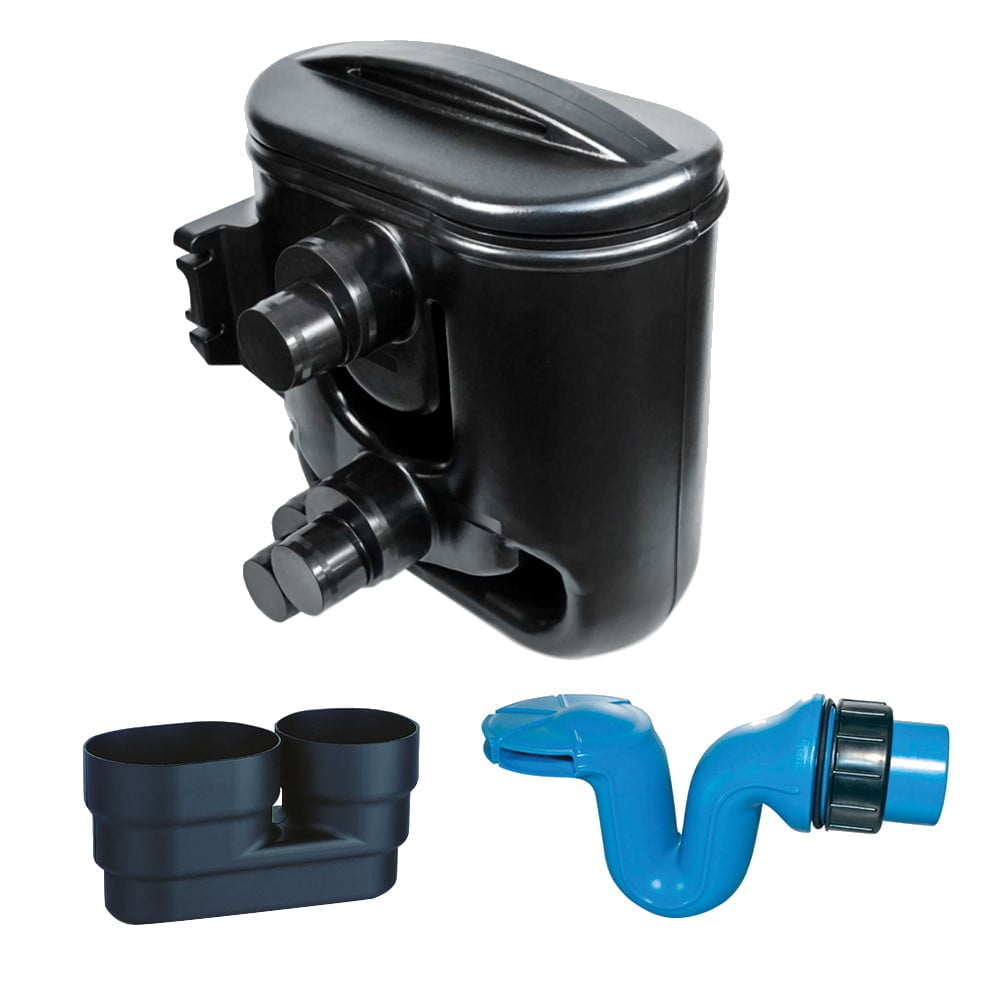

Filter Kit C is tailored for roof areas up to 800 square meters and includes a dual-stage rainwater filter, a siphon overflow, and a calmed inlet.

When water first enters the filter, it crosses a cascade designed to eliminate the largest debris.

Following this initial stage, the water moves through a secondary sieve filter with a 0.65 mm mesh, which efficiently captures any leftover particles.

The water, now clean, is directed into the storage tank through a calmed inlet, ensuring it enters smoothly with minimal disruption to the sediment at the bottom. This method of entry not only keeps the tank stable but also oxygenates the water, helping to avert anaerobic decomposition. At the end of the process, the overflow siphon, equipped with a skimming inlet, removes additional surface debris such as oils and other contaminants, thus further enhancing the water's quality.

Key Features:

• Designed to accommodate roof sizes up to 800 square meters per kit
• Can be installed in a pilot shaft or mounted against the wall in areas protected from frost
• Option for pre-installation in a pilot shaft
• Two-stage cleaning system operates independently of water flow to maximize filtration efficiency
• Filter cartridge strategically placed for ongoing dirt removal
• Compatible with both 110mm (4”) and 160mm (6”) downpipes
• Weighs 16 kg
• Includes a siphon overflow with a skimming feature
• Siphon overflow pipe designed to fit a 130 mm opening in the storage tank wall
• Calmed inlet minimizes disturbance of sediment at the bottom of the tank
• Calmed inlet design also delivers fresh water to the lower parts of the tank, ensuring consistent and thorough water refreshment
