Description
Please Note: Returns are not accepted for these products as they are made to order.
The Skyline CA90 Door Canopy range from Alumasc offers a modern, economical, and durable solution for domestic-scale projects.
Designed for functionality and aesthetic appeal, the CA90 provides ample weather protection above doorways while enhancing the visual character of any building façade.
We can custom coat in any RAL colour. Installation Guide Here.
Key Features
-
Economical and stylish solution for domestic entrances and small-scale architectural projects.
-

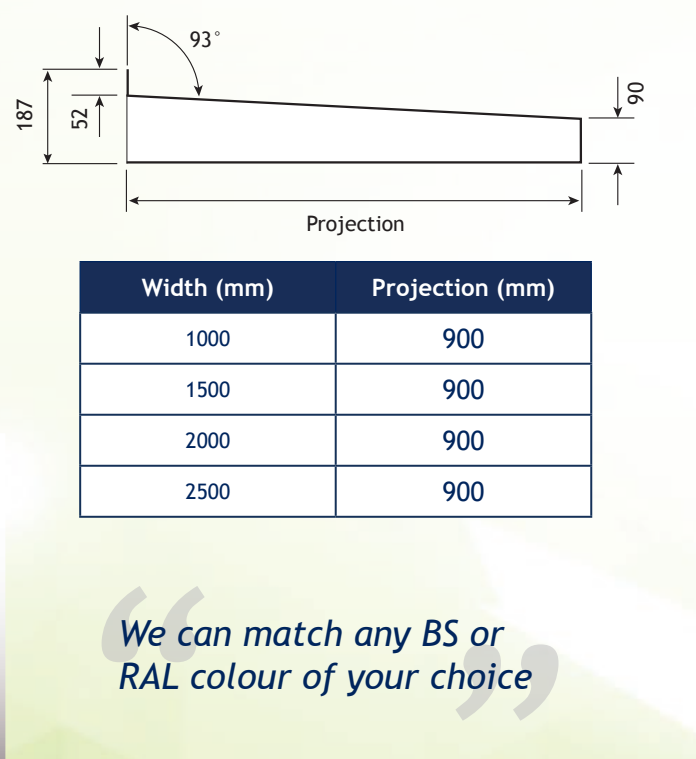

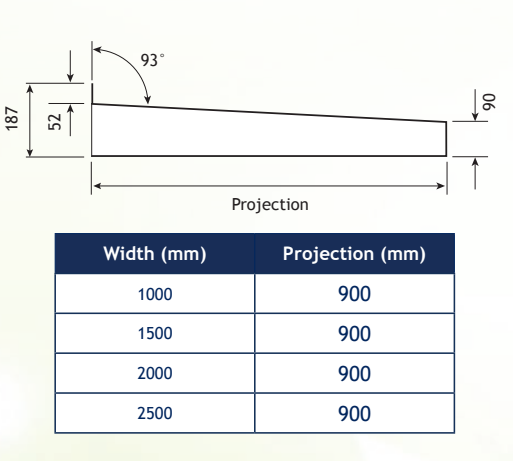

Standard projection: 900mm – provides a generous shelter over typical entrances.
-
Available widths: 1m, 1.5m, 2m, and 2.5m – suitable for single doors, side panels, or double doors.
-
Cantilever bracket design allows direct fixing to most facades for clean, unobtrusive lines.
-
Manufactured from non-combustible aluminium sheet, ensuring long life and exceptional durability.
-
Robust, powder-coated finish (factory applied, BBA approved process) for a low-maintenance, corrosion-free surface.
-
No rusting or staining issues – aluminium provides a clean and maintenance-free material choice.
-
Compatible with recessed or surface-mounted lighting, allowing easy integration of feature or security lights.
Modular & Bespoke Options
-
Modular design: CA90 canopies can be linked in parallel using jointer strips to create a continuous cover – ideal for pathways, extended entrances, or large bifold openings.
-
Bespoke manufacturing available: Custom designs and dimensions can be produced to meet project-specific requirements.
Installation & Compatibility
-
Suitable for door widths up to:
-
900mm (1m canopy)
-
1400mm (1.5m canopy)
-
1900mm (2m canopy)
-
2400mm (2.5m canopy)
-
-
Wall fixing brackets supplied (2–4 brackets depending on size).
-
Powder-coated finish available in any BS or RAL colour to match project aesthetics.
Performance & Certification
-
Non-combustible material: Solid aluminium sheet meets fire safety standards.
-
Powder coating tested to BS476 Parts 6 & 7, achieving Class 0 building regulation approval.
-
Long service life and minimal maintenance requirements make it a sustainable choice for long-term installations.
FAQs
What is the difference between the Alumasc Skyline CA90 and CA120 Kensington Aluminium Canopies?
The only functional difference is the height of the back upstand. The CA90 has a 90 mm back height, while the CA120 has a 120 mm back height. All other aspects—profile, appearance, colours, material, and general performance—are the same. Water drains off the front top of the canopy.
What about the CA160 one?
The CA160 aluminium canopy has a 160 mm high back section and includes an integral side-drainage gutter outlet. Instead of water running off the front edge like the CA90 and CA120 models, the CA160 channels rainwater to the side, where it is directed down a swaged aluminium downpipe. All other visual and material characteristics remain similar across the range.
Can you make up custom widths and projections?
Yes, absolutely. Please email us: info@tradewarehouse.co.uk. We can also do any of the standard RAL colours.
What fixings are recommended for installing the Skyline CA90 Door Canopy?
We recommend using DrillFast Painted Low Profile Mainfix Fasteners in the same RAL colour as the canopy finish for a seamless appearance.
-
25mm Fasteners (no washers): Used to fix the soffit panel to the canopy hood.
Approx. 6 fixings per canopy required. -
35mm Fasteners (with 15mm washers): Used to fix the canopy to the wall brackets. Approx. 3 fixings per canopy bracket required. Each canopy typically includes 4–5 brackets, depending on the width.
How should the CA90 Door Canopy be assembled?
The canopy must be assembled in accordance with the Skyline CA90 installation guideline supplied with the product.
How is the canopy fixed to the wall?
-
Wall brackets should be securely fixed to the masonry substrate using:
-
8 No. M10 anchor rods, nominal length 100mm
-
Fischer Vinylester Mortar FIS VL 300T injection resin
-
-
Allow the anchor bolts to cure for 24 hours before proceeding with canopy installation.
What fixings are required for attaching the soffit panel and canopy?
-
Soffit panel to canopy:
Use 11 No. 5.5mm x 38mm self-drilling screws. -
Canopy to wall brackets:
Use 12 No. 5.5mm x 38mm self-drilling screws. -
Complete assembly to masonry substrate:
Use 10 No. 5.5mm x 38mm self-drilling screws.
Do washers need to be used with all fixings?
-
Washers are not required for the 25mm fasteners (soffit to hood).
-
Washers are required for the 35mm fasteners (canopy to brackets).
Can the fixings be colour matched to the canopy?
Yes. All DrillFast fixings should be painted or powder-coated to match the RAL colour of the canopy finish for a consistent and professional appearance.
