Description
Adjustable Posts up to 250cm. Fixed slab on left or right can be made in any height up to 250cm (2.5m).

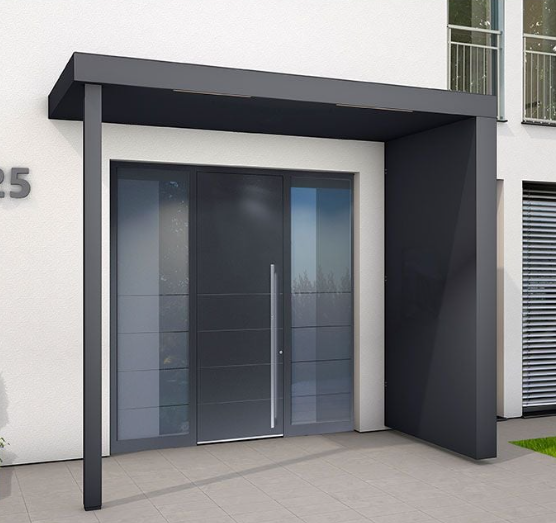

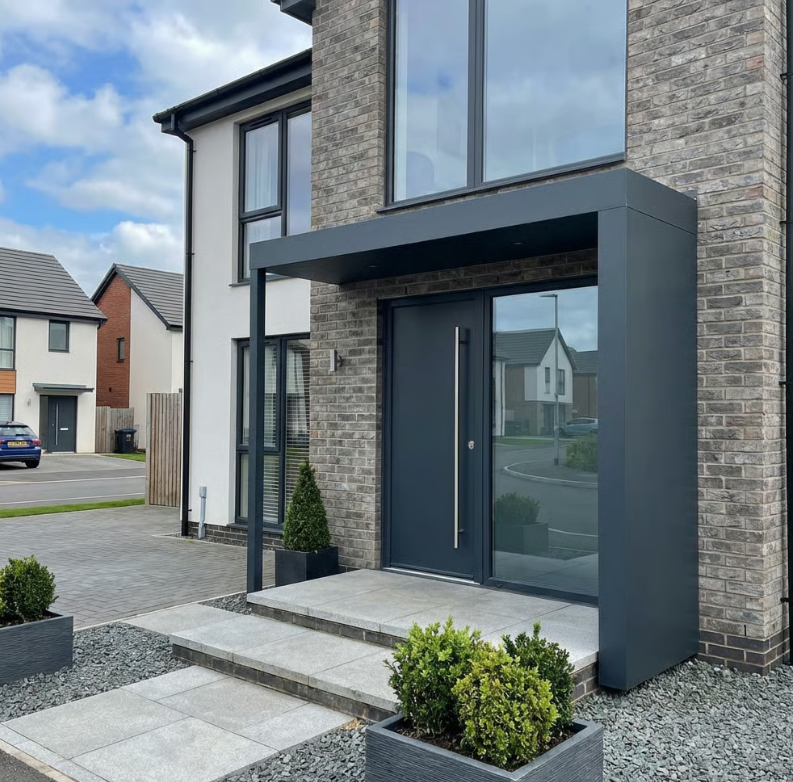

Upgrade your outdoor space with the BS250PLUS Aluminium Canopy, a premium and weather-resistant shelter designed for durability and style. Featuring a sturdy post and side panel with integrated drainage, this canopy offers enhanced protection from rain and wind, making it a perfect addition to doorways, patios, or commercial entrances.
Click Here For The Installation Guide
A sleek, Bauhaus‑inspired aluminium canopy engineered for clean lines, robust weather protection, and everyday usability.
This BS250PLUS configuration delivers a generous 250 cm roof width with a 125 cm projection, includes a full-height side panel with integrated drainage, warm white LED lighting, and a durable powder-coated finish in your chosen custom RAL colour (confirmation required after ordering).
Made in Germany from structural-grade aluminium for long service life and low maintenance.
Why You’ll Love It
-
Modern Bauhaus styling: Straight, minimalist geometry suits contemporary architecture.
-
Engineered strength: Rated for up to 150 kg/m² snow load for year‑round reliability.
-
Premium materials: Aluminium EN AW 6063 T66 with high-quality, fine‑texture powder coat (DB 703 baseline; custom RAL available).
-

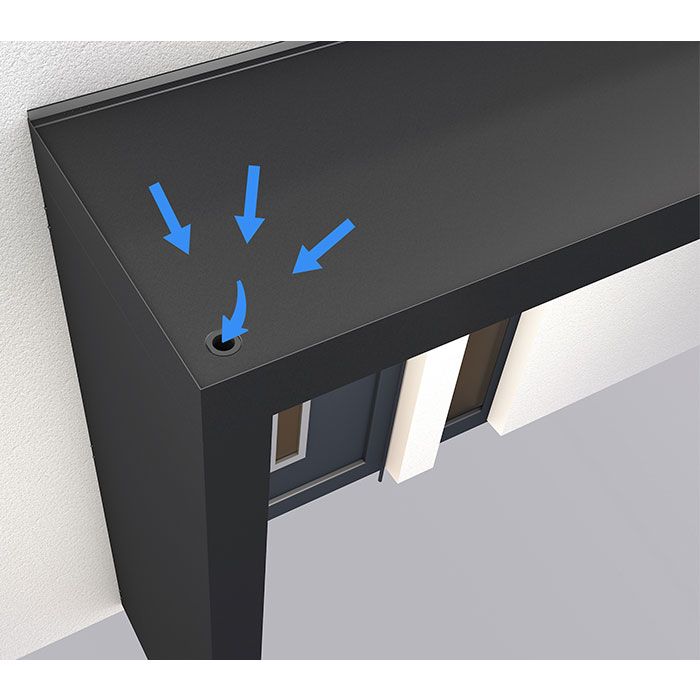

Integrated drainage: Discreet water management routed through the side panel on this configuration (systems without side panel drain through post).
-

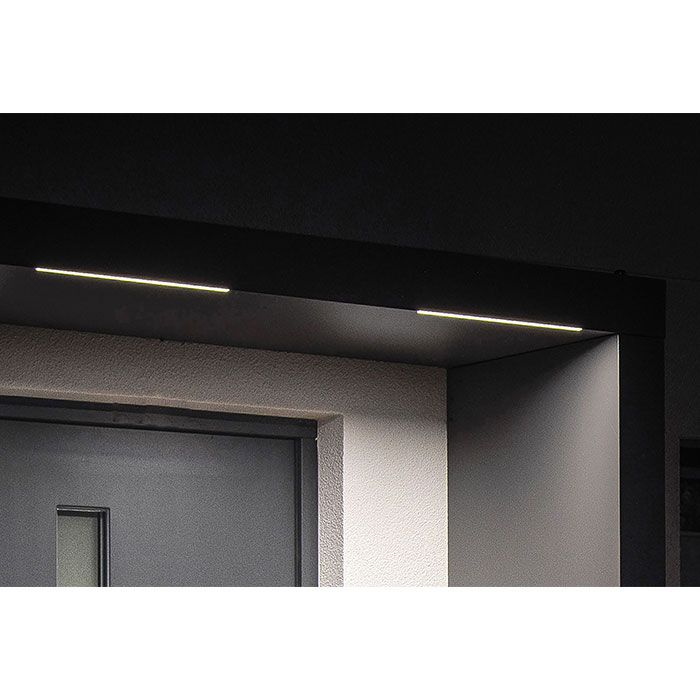

Warm ambience lighting: Built‑in LED strip, 2700 K warm white for inviting illumination under shelter.
-
Insulated roof elements: EPS insulation boards reduce drumming from rain and help moderate temperature transfer.
-
Pre‑assembled elements: Streamlined install saves time on site.
-
Quality made in Germany.
Included in This BS250PLUS Package
-
Roof module: 250 cm width x 125 cm projection.
-
One side panel (250 cm high) with integrated drainage outlet.

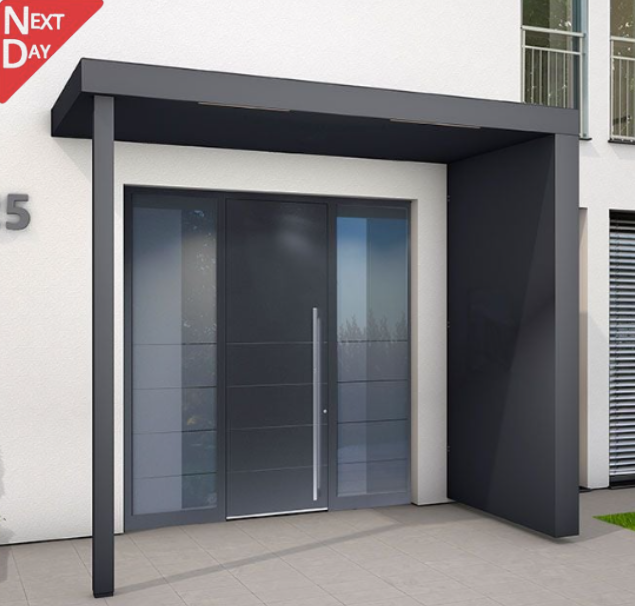

- One Post as Per Image (this would adjust to 250cm to match the height of the fixed slab. We can make the slab shorter depending on your needs.
-
Integrated warm white LED lighting (approx. 2700 K).
-
Mounting/connection elements (standard hardware as supplied by manufacturer; installer to provide site-specific fixings as required).

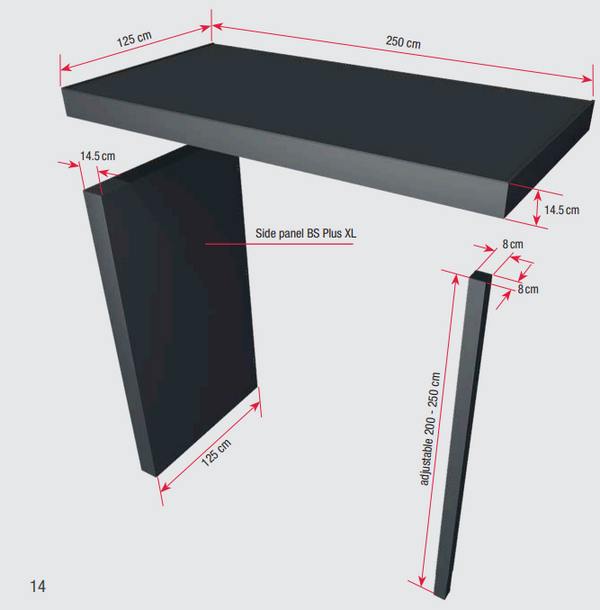

Technical Specifications
Spec | Value |
---|---|
Roof Width | 250 cm |
Projection (Depth) | 125 cm |
Side Panel Height | 250 cm (but we can do shorter panel heights) |
Roof/Side Panel Thickness | 14.5 cm |
Post Length (adjustable) | 200–250 cm |
Post Profile | 8 x 8 cm |
Material | Aluminium EN AW 6063 T66 |
Surface Finish | Powder-coated DB 703 fine structure (Custom RAL available) |
Snow Load Rating | Up to 150 kg/m² |
Drainage | Through side panel (this configuration) |
Roof Weight (2 posts, no side panel) | ~78 kg |
Roof + Side Panel + Posts Weight | ~127 kg |
Insulation | EPS boards integrated in roof elements |
Lighting | Integrated LED, ~2700 K warm white |
Colour & Finish
This listing is for the Custom Colour version. Standard finish is DB 703 fine structure anthracite, but you may specify any RAL colour (e.g., RAL 7016 FS anthracite) subject to lead time.
Action required: Please confirm your chosen RAL colour after ordering by emailing info@tradewarehouse.co.uk.
Installation Notes
-
Posts are height-adjustable (200–250 cm) to suit site conditions; ensure level, load-bearing foundations. This item is 250cm as standard.
-
Integrated drainage must be directed to an appropriate discharge point; installer to connect per local regulations.
-
Electrical connection for LED lighting should be completed by a qualified electrician.
Key Features:
✅ Robust Aluminium Construction – Built for longevity with a strong, rust-resistant frame.
✅ Integrated LED Lighting – Provides stylish illumination for enhanced visibility and ambiance.
✅ Side Panel with Drainage System – Directs water away efficiently, keeping your space dry.
✅ Spacious Coverage – 250x125cm projection offers ample protection for entrances or seating areas.
✅ Weather-Resistant Finish – RAL7016 Anthracite Grey powder coating for a sleek, modern look.
✅ Secure & Stable Design – Single support post ensures strength while maintaining an open feel.
✅ Easy Installation – Supplied with detailed instructions for a smooth setup.
Ideal for residential and commercial use, the BS250PLUS Aluminium Canopy delivers a perfect balance of functionality, durability, and contemporary design.
